Figures in which the part appears:
Also known as:
203582, 0203582, 00203582
203582, 0203582, 00203582

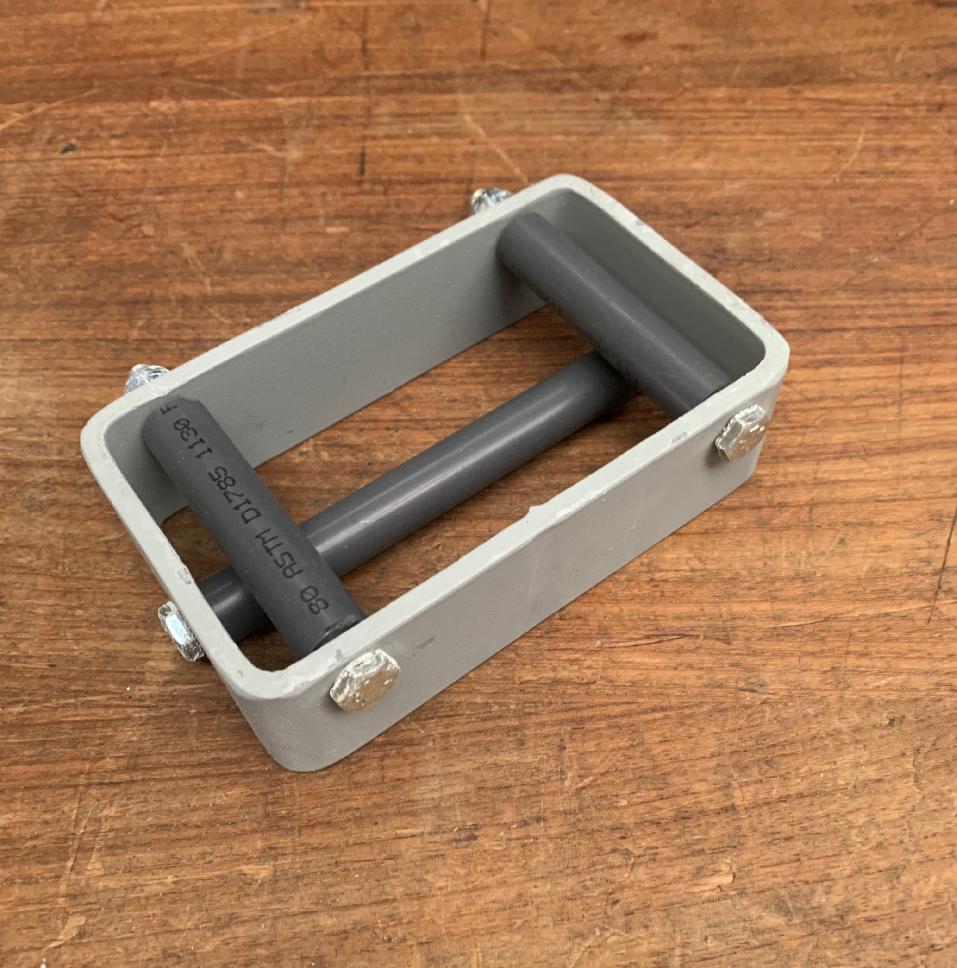

TUBE - Part 203582 for Grove cranes
Fits these models: Grove , Grove AT 422, Grove GMK, Grove RT 530E, Grove RT 540E, Grove RT 650 E, Grove RT 770E, Grove RT 875E, Grove RT 880E, Grove RT 9100, Grove TMS 700 E

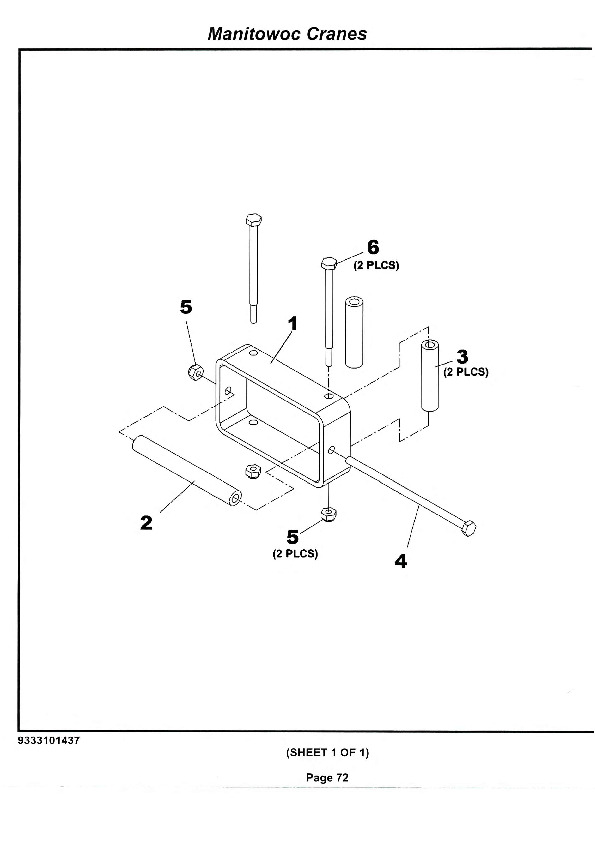

Figure 9333101437:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 203582 | TUBE | 0.410 |
| 2 | 203583 | ROLLER | 0.018 |
| 3 | 203584 | ROLLER | 0.010 |
| 4 | 7115144450 | CAP SCREW, 114-20UNC X 5 1/2 | 0.035 |
| 5 | 846531 | SELF-LOCKING NUT | 0.004 |
| 6 | 7115143250 | CAP SCREW, | 0.030 |
