Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Demag (Demag AC )
5.3 (Terex RT 500-1 )

Also known as:
220370, 0220370, 00220370

BRAKE ASSEMBLY - Part 220370 for Terex cranes

Fits these models: Demag AC, Terex RT 500-1

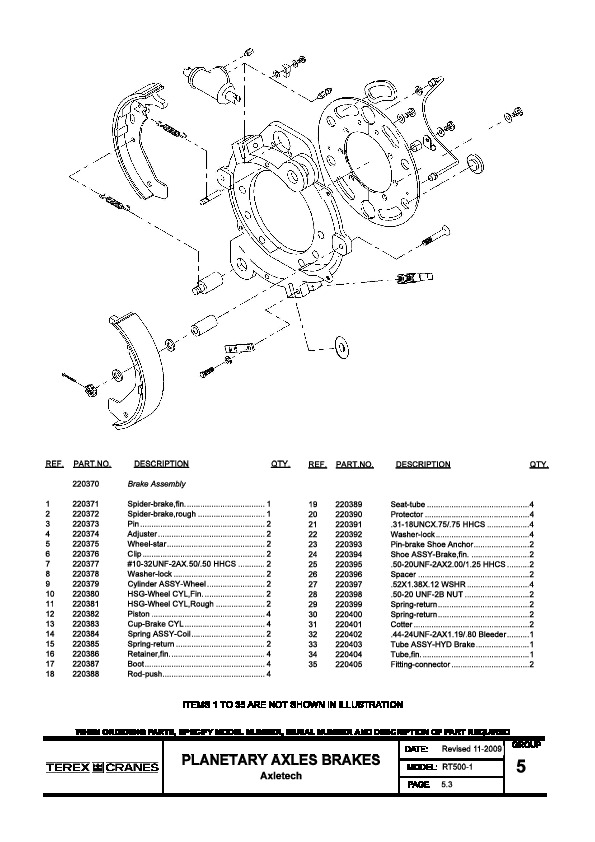

Figure 5.3:

Pos nr	Part number	Description
	220370	BRAKE ASSEMBLY
1	220371	SPIDER-BRAKE,FIN
2	220372	SPIDER-BRAKE,ROUGH
3	220373	PIN
4	220374	ADJUSTER
5	220375	WHEEL-STAR
6	220376	CLIP
7	220377	#10-32UNF-2AX.50/.50 HHCS
8	220378	WASHER-LOCK
9	220379	CYLINDER ASSY-WHEEL
10	220380	HSG-WHEEL CYL,FIN
11	220381	HSG-WHEEL CYL,ROUGH
12	220382	PISTON
13	220383	CUP-BRAKE CYL
14	220384	SPRING ASSY-COIL
15	220385	SPRING-RETURN
16	220386	RETAINER,FIN
17	220387	BOOT
18	220388	ROD-PUSH
19	220389	SEAT-TUBE
20	220390	PROTECTOR
21	220391	.31-18UNCX.75/.75 HHCS
22	220392	WASHER-LOCK
23	220393	PIN-BRAKE SHOE ANCHOR
24	220394	SHOE ASSY-BRAKE,FIN
25	220395	.50-20UNF-2AX2.00/1.25 HHCS
26	220396	SPACER
27	220397	.52X1.38X.12 WSHR
28	220398	.50-20 UNF-2B NUT
29	220399	SPRING-RETURN
30	220400	SPRING-RETURN
31	220401	COTTER
32	220402	.44-24UNF-2AX1.19/.80 BLEEDER
33	220403	TUBE ASSY-HYD BRAKE
34	220404	TUBE,FIN
35	220405	FITTING-CONNECTOR
