Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
2287614, 02287614, 002287614
2287614, 02287614, 002287614
AXLE A1TACHMENT - Part 2287614 for Krupp cranes
Fits these models: Krupp KMK 5110

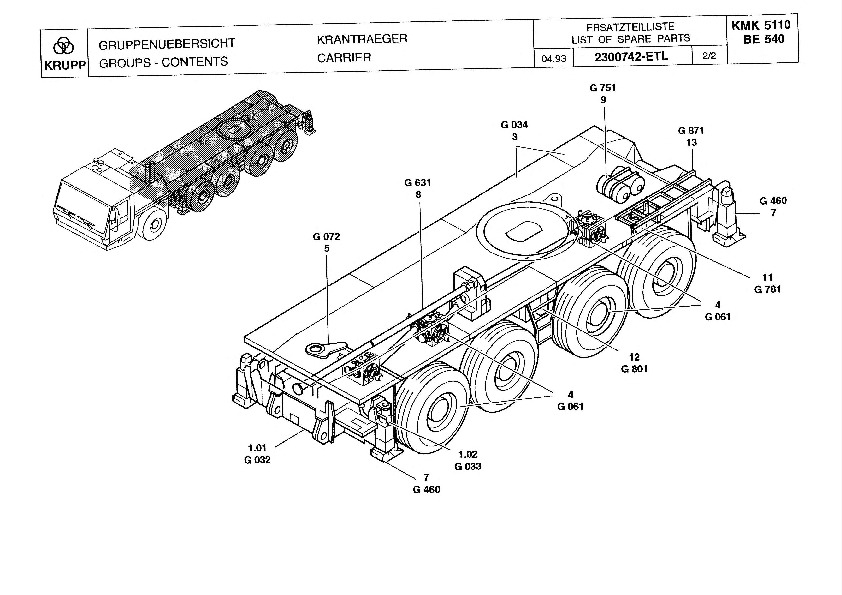

Figure 2300742-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1.01 | 2082131 | CHASSIS FRAME |
| 1.02 | 2227309 | A1TACHMENTS |
| 3 | 2082877 | COVER PLTES |
| 4 | 2287614 | AXLE A1TACHMENT |
| 5 | 2082756 | STEERINGSVSTEM |
| 7 | 2082405 | HYDRAUUC OUTRIGGERS |
| 8 | 2226362 | DRIVE |
| 9 | 2225413 | COMPRESSED-AIR SYS I TM |
| 11 | 2220809 | HYDRAUUC SYSI HM |
| 12 | 2298423 | ELECTRICAL SYSTEM |
| 13 | 2220427 | ACCESSOR1ES |
