Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
2316111, 02316111, 002316111
2316111, 02316111, 002316111
RETAINING RING - Part 2316111 for Grove cranes
Fits these models: Grove GMK 5160

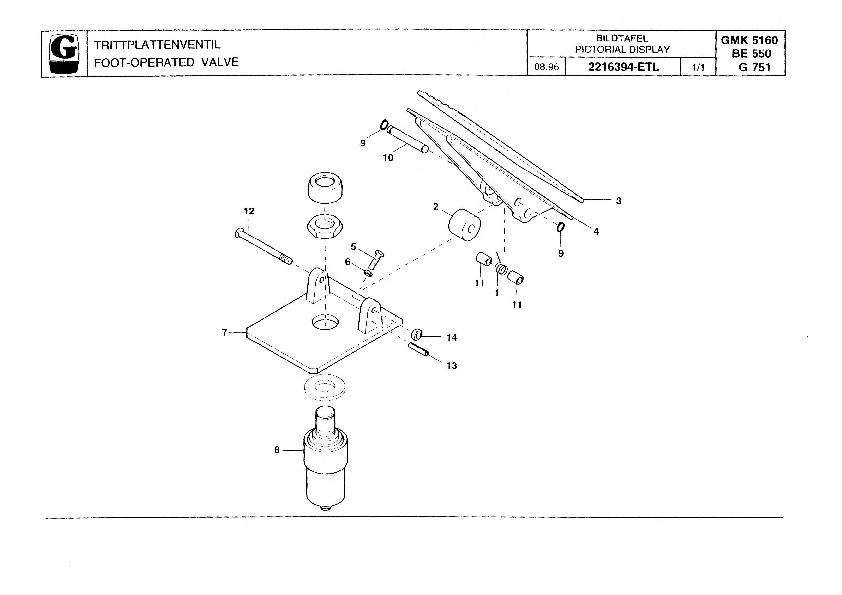

Figure 2216394-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 2316096 | SPRING |
| 2 | 2316097 | PRESSURE ROLLER |
| 3 | 2316098 | PEDAL COVER |
| 4 | 2316099 | PEDAL PLATE |
| 5 | 2316100 | BOLT |
| 6 | 2316101 | NUT |
| 7 | 2316109 | BASE PLATE |
| 8 | 2316110 | VALVE |
| 9 | 2316111 | RETAINING RING |
| 10 | 2316112 | PIN |
| 11 | 2316113 | PLAIN BEARING |
| 12 | 2316114 | WASHER |
| 13 | 2316115 | PIN |
| 14 | 2316116 | NUT |
