Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3036314, 03036314, 003036314
3036314, 03036314, 003036314
HYDR. SYSTEM - Part 3036314 for Grove cranes
Fits these models: Grove GMK 3050 V3

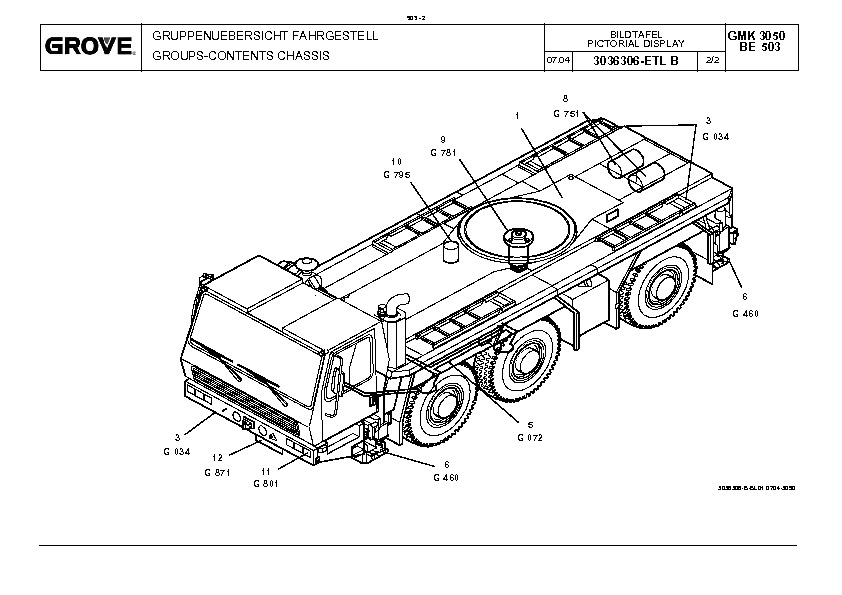

Figure 3036306-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3036307 | CHASSIS FRAME CPL. |
| 3 | 3036337 | COVERING ASSEMBLY |
| 5 | 3036334 | STEERING SYSTEM |
| 6 | 2287906 | OUTRIGGERS CPL. |
| 8 | 3036398 | COMPRESSED-AIR SYSTEM |
| 9 | 3036314 | HYDR. SYSTEM |
| 10 | 2228248 | CENTRAL LUBRICATION |
| 11 | 3012623 | E.- SYSTEM |
| 12 | 3036345 | ACCESSORIES |
