Search for Crane Part number
Figures in which the part appears:
GMK (Grove GMK )
Also known as:
3065745, 03065745, 003065745

MAINT. KIT GMK 5170-1 / 5220 - Part 3065745 for Grove cranes

Fits these models: Grove GMK

Figure GMK:

Part number Description Weight in kg
0434575 GROOVED BALL BEARING 1.085
0438514 BULB 0.001
0438912 BULB (H1, 24 V, 70 W) 0.015
0439055 BULB (24 V, 21 W) 0.02
1066962 O-RING 0.14
1202061 PRESSURE TEST CONNECTION 0.07
1207756 WHEEL NUT 0.06
1371192 SPACER RING 0.04
1375772 STOP LIGHT SWITCH 0.320
1376580 MAGNET VALVE 2.460
1576585 TAPERED ROLLER BEARING 2.495
1576680 TAPERED ROLLER BEARING 1.77
1684119 DRIVE-IN NUT 0.420
1684363 O-RING 0.005
1684364 O-RING 60 X 4 0.005
1684632 PISTON GUIDE RING 0.001
1925079 DRIVE-IN NUT 0.26
1925349 TAPERED ROLLER BEARING 1.37
1926635 BULB (24 V, 5 W) 0.005
2210088 FLAT FUSE 10 A 0.005
2210089 FLAT FUSE 15 A 0.005
2210196 FLAT FUSE 3 A 0.005
2210197 FLAT FUSE 5 A 0.005
2210349 BULB 0.1
2212205 FLAT FUSE 20 A 0.001
2254177 PRESSURE SPRING 0.001
2255178 PLANETARY HOUSING 28
2309032 SLIDING SLEEVE 0.62
2309034 PISTON 0.13
2309036 ROD 0.29
2309038 O-RING, 50 X 3 0.005
2309039 CYLINDER 0.26
2311858 WIPER BLADE 0.65
2313181 PRESSURE SPRING 0.005
2313838 SPRING 0.180
2315796 MEGI-CONE 2.35
2315957 UNION SET 0.001
2315958 ADJUSTING SIGNS ( (SET) 0.001
2315959 ADJUSTING WASHER (SET) 0.35
2316776 FLANGE DRIVER 4.17
2316997 FUEL SCREEN 0.001
2316998 FILLER CAP 0.307
3011911 THREE-WAY-COCK 0.8
3041007 LIQUID LEVEL TRANSMITTER 1.030
3041008 FUEL SCREEN 0.044
3041009 O-RING 0.005
3041686 COOLING WATER LEVEL SENDER 0.28
3042520 FLANGE DRIVER 3.34
3043871 PRESSURE SPRING 0.02
3045784 FAN 8.920
3045797 START-STOP-SWITCH 0.001
3045800 GASKET (FOR CYLINDER HEAD) 0.06
3045803 OIL MEASURING TRANSMITTER 0.15
3045894 SET OF SEALS 0.16
3045929 PAIR OF ROTORS CPL. 0.001
3046245 RAIN CAP 1
3046248 MAINTENANCE SWITCH 0.180
3046878 OIL CHANGE VALVE 0.15
3099319 SUSPENSION CYLINDER 34
3108504 PIN 1.17
3134626 SEAL KIT 0.26
3134627 JOINT BEARING 0.32
3316083 SET OF SEALS 0.250
3316228 LOCK 0.05
3316941 ROTARY SHAFT SEAL 0.1
3317421 FUSE 0.005
3319527 CROSS YOKE 2.520
3319629 ROTARY SHAFT SEAL 0.01
3319632 SEAL 0.180
3319639 ROTARY SHAFT SEAL 0.075
3319656 OIL PRESSURE SENSOR 0.058
3319663 CRANK ANGEL POSITION SENSOR 0.220
3320237 FLAT FUSE 2 A 0.005
3322878 OVERFLOW VALVE 0.005
3322879 SEAL 0.2
3322880 OUTLET VALVE 0.140
3324260 SET OF SEALS 0.18
3324401 CROSS YOKE 1.77
3324547 ROTARY SHAFT SEAL 0.16
3324670 SUPERCHARGER AIR TEMPERATURE SENSOR 0.18
3324720 O-RING 0.170
3324721 SEAL 0.005
3324722 REED SWITCH 0.24
3324723 O-RING 0.001
3325731 VALVE 0.08
3325732 VALVE 0.05
3326049 SET OF SEALS FOR HOUSING 0.15
3326121 WIPER BLADE 0.32
3326342 SET OF SEALS 0.500
3326547 BRAKE SHOE WITH LINING 0.001
3326574 ROTARY SHAFT SEAL 0.12
3326576 SPRING 0.13
3326577 BRAKE SHOE WITH LINING 500X120 MM 8.910
3326972 PULS GENERATOR (TYPE HALL) 0.106
3326975 PULSE GENERATOR 0.1
3328278 STARTER 9.041
3328279 COOLANT TEMPERATURE SENSOR 0.180
3328280 GASKET (FOR CYLINDER HEAD) 0.16
3328811 SWITCH 0.09
3328828 V-RIBBED BELT 0.2
* Selected parts are automatically added to your RFQ list *

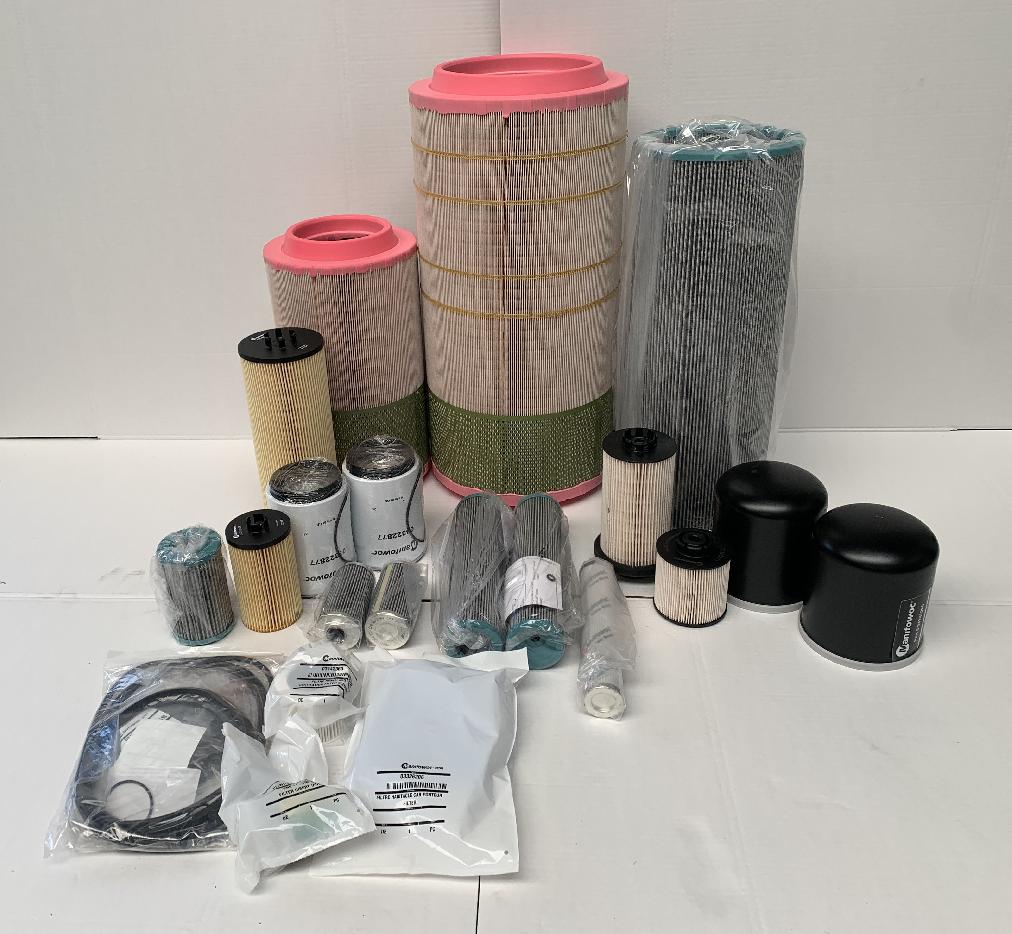

3065745 Grove GMK MAINT. KIT GMK 5170-1 / 5220
