Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3067736, 03067736, 003067736
3067736, 03067736, 003067736

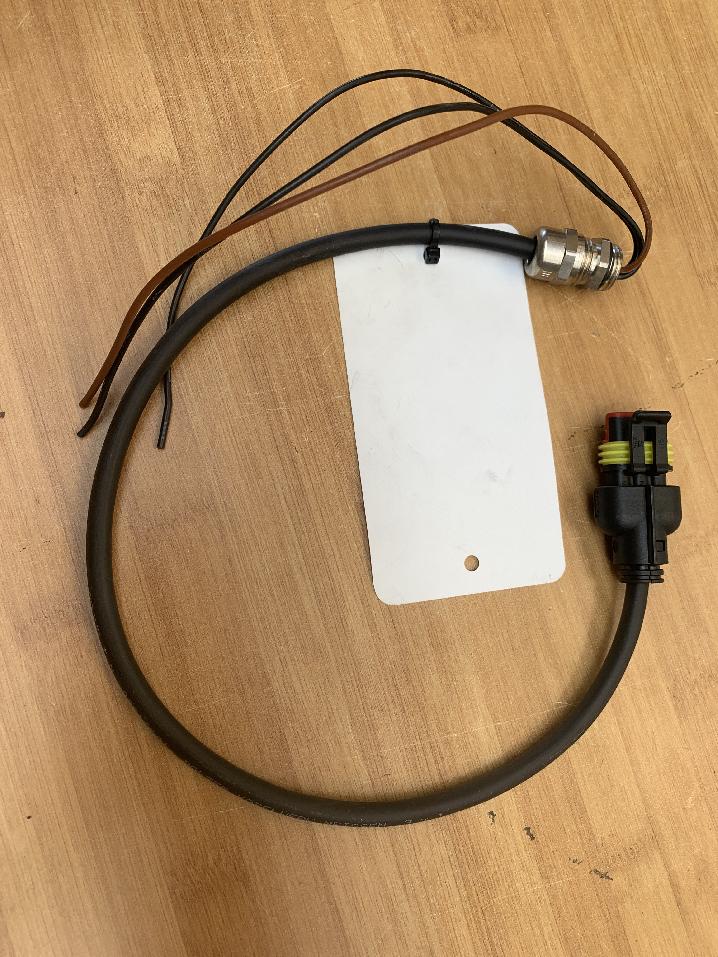

WIRING HARNESS - Part 3067736 for Grove cranes
Fits these models: Grove GMK, Grove GMK 5220
Figure 3067738-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3317939 | PRESSURE SENSOR | 0.3 |
| 2 | 3067735 | CABLE HARNESS SLIDING SUPPORT | 0.390 |
| 3 | 3067736 | WIRING HARNESS | 0.070 |
| 6 | 3067737 | CABLE HARNESS | 0.200 |
| 8 | 3320600 | CONTROL UNIT, OUTRIGGERS | 3.184 |
| 9 | 3089076 | CABLE HARNESS, OUTRIGGER CONTROL UNIT | 0.02 |
