Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3100410-ETL (Grove GMK 5220 )
Also known as:
3100431, 03100431, 003100431

ATTACHING PARTS - Part 3100431 for Grove cranes

Fits these models: Grove GMK 5220

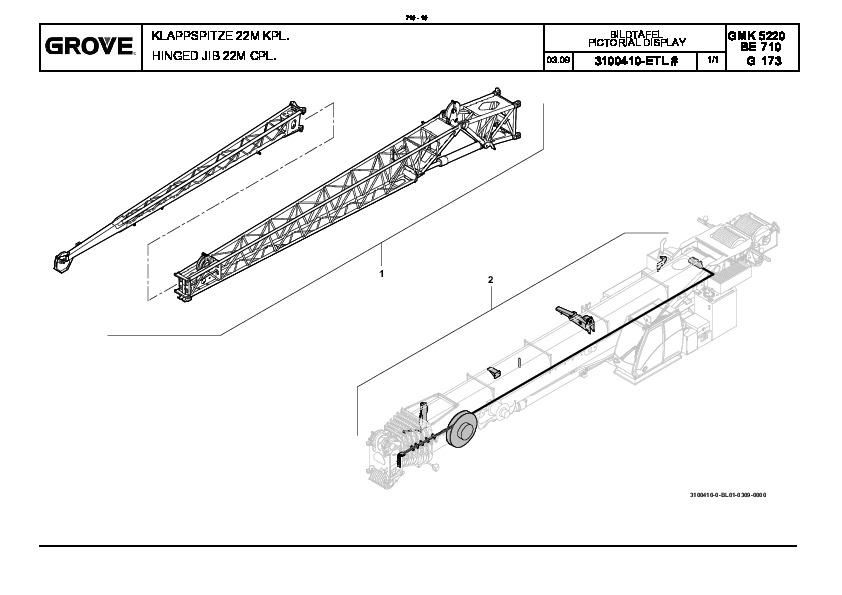

Figure 3100410-ETL:

Pos nr Part number Description
1 3100411 SWING-AWAY JIB 22 M
2 3100431 ATTACHING PARTS
* Selected parts are automatically added to your RFQ list *
