Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3100437, 03100437, 003100437
3100437, 03100437, 003100437
HYDR. SYSTEM JIB - Part 3100437 for Grove cranes
Fits these models: Grove GMK, Grove GMK 5220

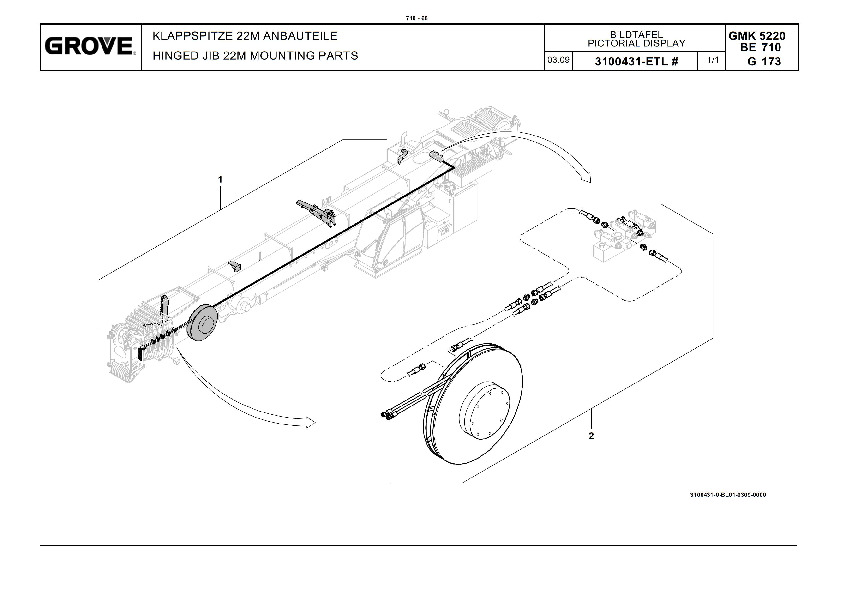

Figure 3100431-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3100432 | ATTACHING PARTS TELESCOPIC BOO | |
| 2 | 3100437 | HYDR. SYSTEM JIB | 0.001 |
