Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3161459-ETL (Grove GMK 5220 )
GMK (Grove GMK )
Also known as:
3109601, 03109601, 003109601

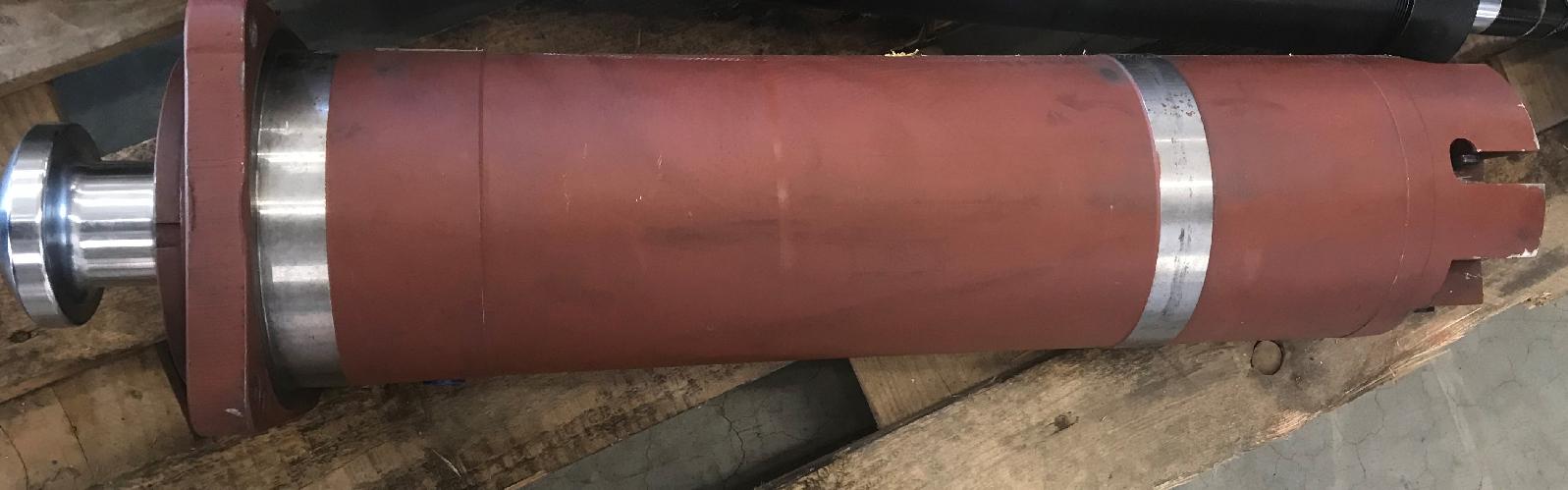

CYLINDER - Part 3109601 for Grove cranes

Fits these models: Grove GMK, Grove GMK 5220

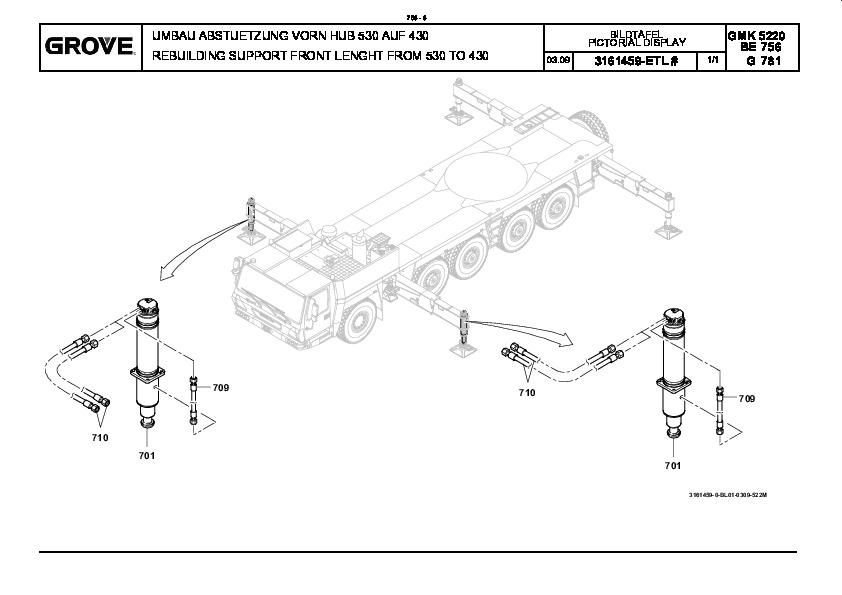

Figure 3161459-ETL:

Pos nr Part number Description Weight in kg
701 3109601 CYLINDER 136.363
709 2318520 HOSE 0.41
710 3113931 DOUBLE HOSE LINE
* Selected parts are automatically added to your RFQ list *
3109601 Grove GMK 5220 CYLINDER
