Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3323535-ETL (Grove GMK 3050-1 HYDR. CYLINDER)
3323535-ETL (Grove GMK 3055 )
3323535-ETL (Grove GMK 3060 )
3323535-ETL (Grove GMK 3060-2 )
3323535-ETL (Grove GMK 3055 )
3323535-ETL (Grove GMK 3060 )
3323535-ETL (Grove GMK 3060-2 )
Also known as:
3137576, 03137576, 003137576
3137576, 03137576, 003137576
PISTON ROD - Part 3137576 for Grove cranes
Fits these models: Grove GMK 3050-1, Grove GMK 3055, Grove GMK 3060, Grove GMK 3060-2

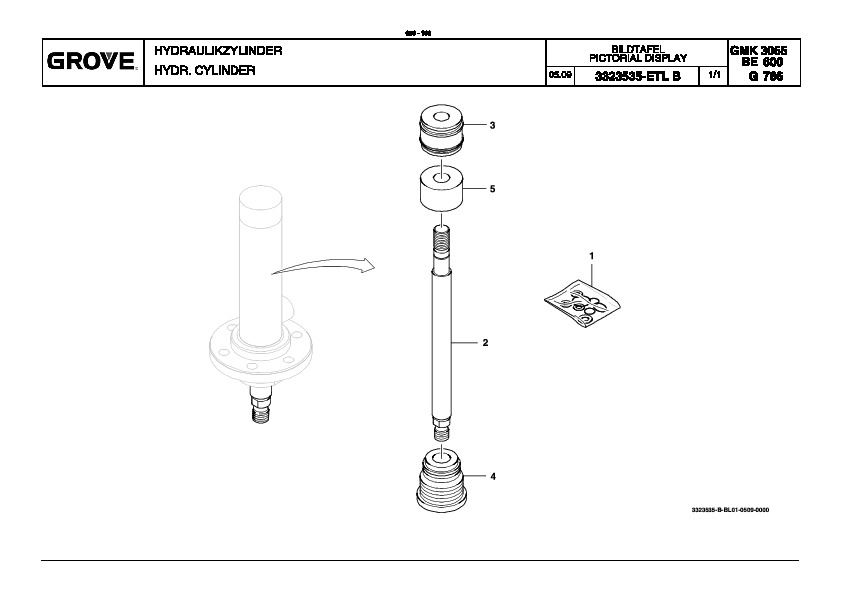

Figure 3323535-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3322914 | SET OF SEALS | 0.02 |
| 2 | 3137576 | PISTON ROD | |
| 3 | 3137577 | PISTON | |
| 4 | 3137578 | GUIDE NUT | |
| 5 | 3137579 | SPACER BUSH |
