Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3144203-ETL (Grove GMK 6300L )
Also known as:
3144205, 03144205, 003144205

PUMP CPL. - Part 3144205 for Grove cranes

Fits these models: Grove GMK 6300L

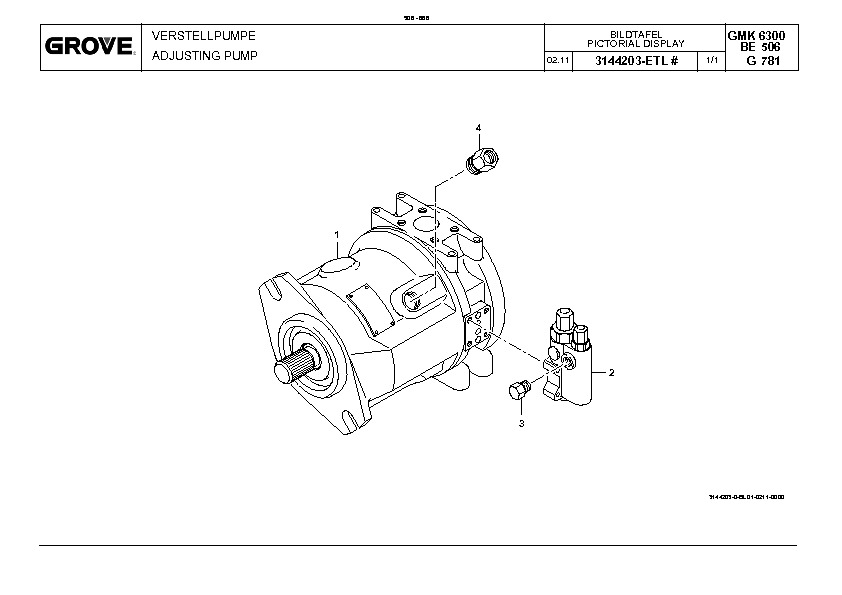

Figure 3144203-ETL:

Pos nr Part number Description Weight in kg
1 3144205 PUMP CPL.
2 3138710 CONTROL VALVE 1.05
3 3139583 ADAPTER
4 3144181 ADAPTER
