GMK (Grove GMK )

Also known as:
3144621, 03144621, 003144621

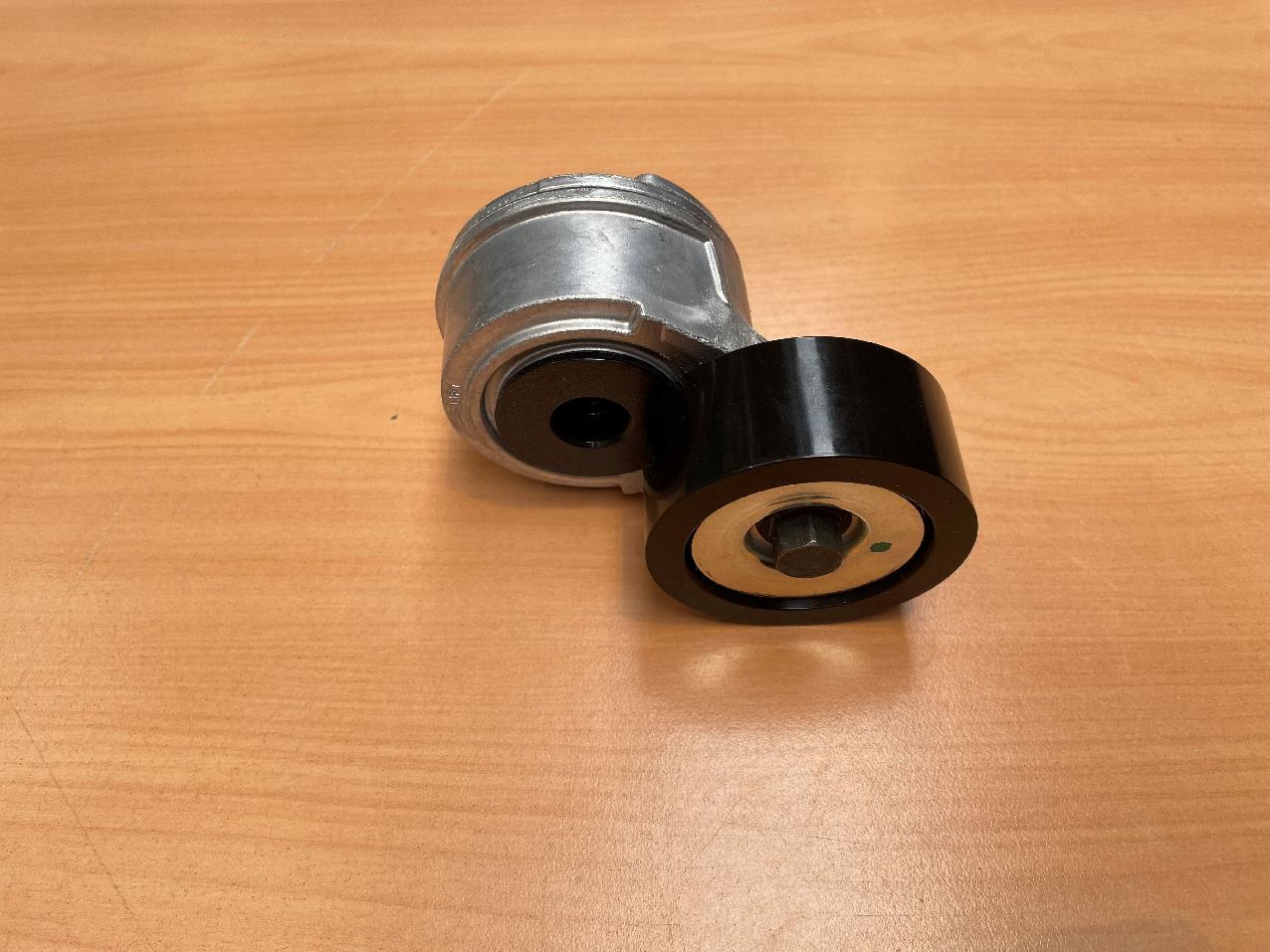

BELT STRECHER - Part 3144621 for Grove cranes

Fits these models: Grove GMK, Grove GMK 4100, Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2, Grove GMK 5170, Grove GMK 5200, Grove GMK 5220

Part number	Description	Weight in kg
0434575	GROOVED BALL BEARING	1.085
0438514	BULB	0.001
0438912	BULB (H1, 24 V, 70 W)	0.015
0439055	BULB (24 V, 21 W)	0.02
1066962	O-RING	0.14
1202061	PRESSURE TEST CONNECTION	0.07
1207756	WHEEL NUT	0.06
1371192	SPACER RING	0.04
1375772	STOP LIGHT SWITCH	0.320
1376580	MAGNET VALVE	2.460
1576585	TAPERED ROLLER BEARING	2.495
1576680	TAPERED ROLLER BEARING	1.77
1684119	DRIVE-IN NUT	0.420
1684363	O-RING	0.005
1684364	O-RING 60 X 4	0.005
1684632	PISTON GUIDE RING	0.001
1925079	DRIVE-IN NUT	0.26
1925349	TAPERED ROLLER BEARING	1.37
1926635	BULB (24 V, 5 W)	0.005
2210088	FLAT FUSE 10 A	0.005
2210089	FLAT FUSE 15 A	0.005
2210196	FLAT FUSE 3 A	0.005
2210197	FLAT FUSE 5 A	0.005
2210349	BULB	0.1
2212205	FLAT FUSE 20 A	0.001
2254177	PRESSURE SPRING	0.001
2255178	PLANETARY HOUSING	28
2309032	SLIDING SLEEVE	0.62
2309034	PISTON	0.13
2309036	ROD	0.29
2309038	O-RING, 50 X 3	0.005
2309039	CYLINDER	0.26
2311858	WIPER BLADE	0.65
2313181	PRESSURE SPRING	0.005
2313838	SPRING	0.180
2315796	MEGI-CONE	2.35
2315957	UNION SET	0.001
2315958	ADJUSTING SIGNS ( (SET)	0.001
2315959	ADJUSTING WASHER (SET)	0.35
2316776	FLANGE DRIVER	4.17
2316997	FUEL SCREEN	0.001
2316998	FILLER CAP	0.307
3011911	THREE-WAY-COCK	0.8
3041007	LIQUID LEVEL TRANSMITTER	1.030
3041008	FUEL SCREEN	0.044
3041009	O-RING	0.005
3041686	COOLING WATER LEVEL SENDER	0.28
3042520	FLANGE DRIVER	3.34
3043871	PRESSURE SPRING	0.02
3045784	FAN	8.920
3045797	START-STOP-SWITCH	0.001
3045800	GASKET (FOR CYLINDER HEAD)	0.06
3045803	OIL MEASURING TRANSMITTER	0.15
3045894	SET OF SEALS	0.16
3045929	PAIR OF ROTORS CPL.	0.001
3046245	RAIN CAP	1
3046248	MAINTENANCE SWITCH	0.180
3046878	OIL CHANGE VALVE	0.15
3099319	SUSPENSION CYLINDER	34
3108504	PIN	1.17
3134626	SEAL KIT	0.26
3134627	JOINT BEARING	0.32
3316083	SET OF SEALS	0.250
3316228	LOCK	0.05
3316941	ROTARY SHAFT SEAL	0.1
3317421	FUSE	0.005
3319527	CROSS YOKE	2.520
3319629	ROTARY SHAFT SEAL	0.01
3319632	SEAL	0.180
3319639	ROTARY SHAFT SEAL	0.075
3319656	OIL PRESSURE SENSOR	0.058
3319663	CRANK ANGEL POSITION SENSOR	0.220
3320237	FLAT FUSE 2 A	0.005
3322878	OVERFLOW VALVE	0.005
3322879	SEAL	0.2
3322880	OUTLET VALVE	0.140
3324260	SET OF SEALS	0.18
3324401	CROSS YOKE	1.77
3324547	ROTARY SHAFT SEAL	0.16
3324670	SUPERCHARGER AIR TEMPERATURE SENSOR	0.18
3324720	O-RING	0.170
3324721	SEAL	0.005
3324722	REED SWITCH	0.24
3324723	O-RING	0.001
3325731	VALVE	0.08
3325732	VALVE	0.05
3326049	SET OF SEALS FOR HOUSING	0.15
3326121	WIPER BLADE	0.32
3326342	SET OF SEALS	0.500
3326547	BRAKE SHOE WITH LINING	0.001
3326574	ROTARY SHAFT SEAL	0.12
3326576	SPRING	0.13
3326577	BRAKE SHOE WITH LINING 500X120 MM	8.910
3326972	PULS GENERATOR (TYPE HALL)	0.106
3326975	PULSE GENERATOR	0.1
3328278	STARTER	9.041
3328279	COOLANT TEMPERATURE SENSOR	0.180
3328280	GASKET (FOR CYLINDER HEAD)	0.16
3328811	SWITCH	0.09
3328828	V-RIBBED BELT	0.2
