Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3397252-ETL (Grove GMK 6400 )
Also known as:
3184183, 03184183, 003184183

PLATE - Part 3184183 for Grove cranes

Fits these models: Grove GMK 6400

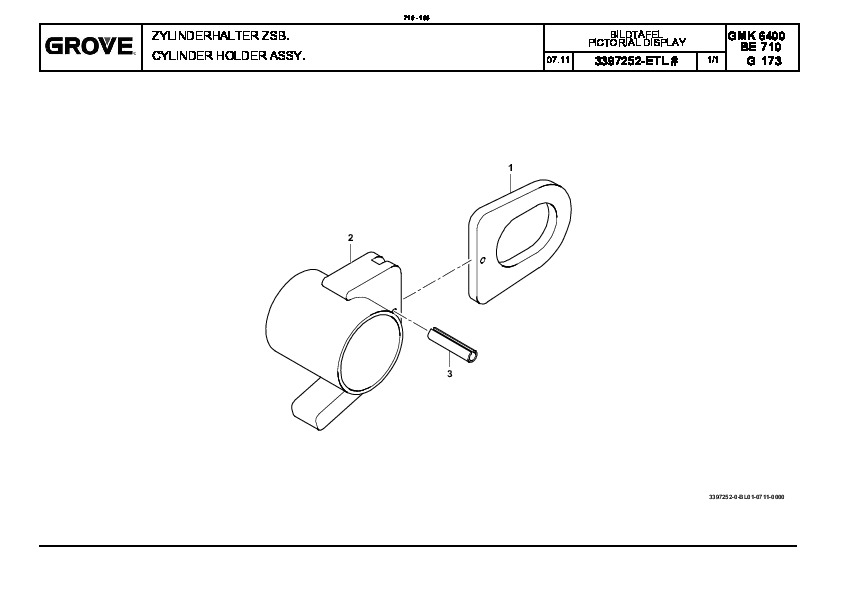

Figure 3397252-ETL:

Pos nr Part number Description Weight in kg
1 3184183 PLATE
2 3184209 CYLINDER HOLDER
3 0100458 DOWEL PIN 0.002
* Selected parts are automatically added to your RFQ list *
