Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3407740-ETL (Grove GMK 6400 )
Also known as:
3192990, 03192990, 003192990

FUEL-DIAGRAM - Part 3192990 for Grove cranes

Fits these models: Grove GMK 6400

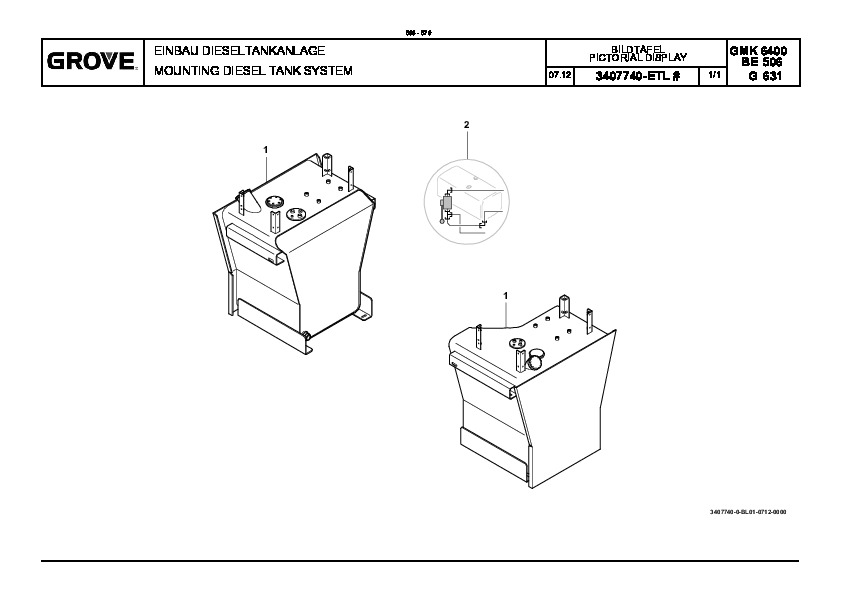

Figure 3407740-ETL:

Pos nr Part number Description
1 3192989 MOUNTING DIESEL TANK
2 3192990 FUEL-DIAGRAM
* Selected parts are automatically added to your RFQ list *
