Figures in which the part appears:
Also known as:
3224664, 03224664, 003224664
3224664, 03224664, 003224664
HYDR. SYSTEM, SWING-AWAY JIB, TURNTABLE - Part 3224664 for Grove cranes
Fits these models: Grove GMK 3050-1

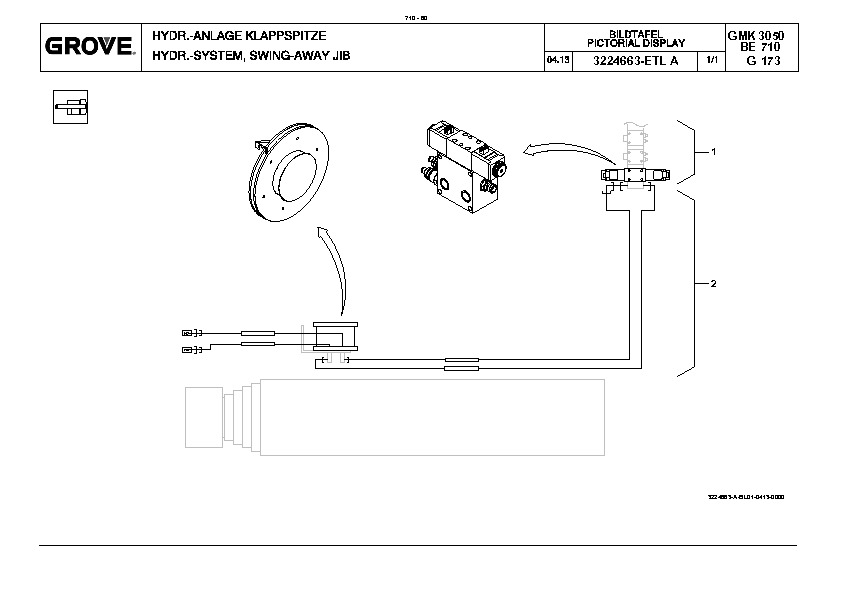

Figure 3224663-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3224664 | HYDR. SYSTEM, SWING-AWAY JIB, TURNTABLE |
| 2 | 3224665 | HYDR. SYSTEM, SWING-AWAY JIB, MAIN BOOM |
