Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3240583, 03240583, 003240583
3240583, 03240583, 003240583
CHASSIS 3,0M 10 X 8 X 10 - Part 3240583 for Grove cranes
Fits these models: Grove GMK 5250-L, Grove GMK 5250L

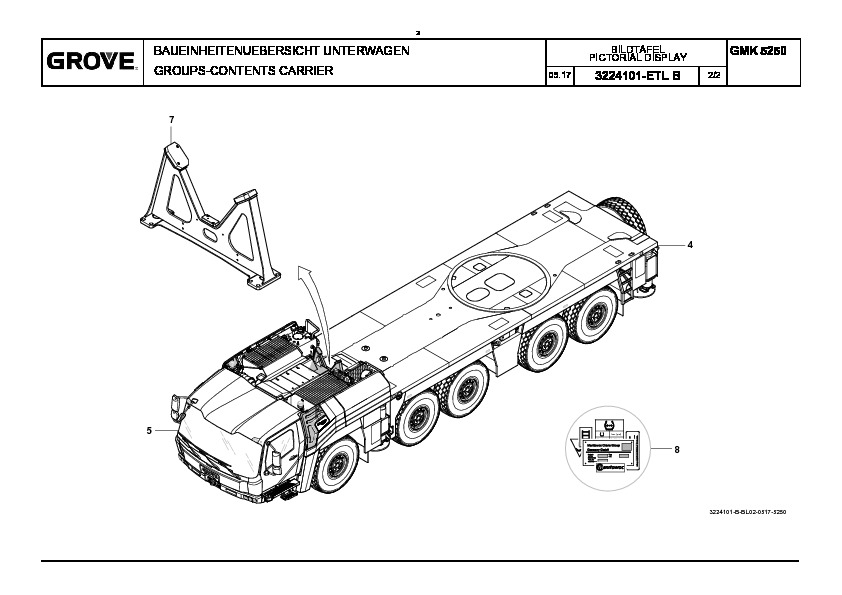

Figure 3224101-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3240583 | CHASSIS 3,0M 10 X 8 X 10 |
| 2 | 3215261 | DRIVERS CAB 2,74M |
| 3 | 3224091 | BOOM SUPPORT ASSY |
| 4 | 3240584 | COMPLETION BASIC MODULE CARRIER |
