Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3247716, 03247716, 003247716
3247716, 03247716, 003247716
MOUNTING PARTS, BOOM - Part 3247716 for Grove cranes
Fits these models: Grove GMK 4100-L

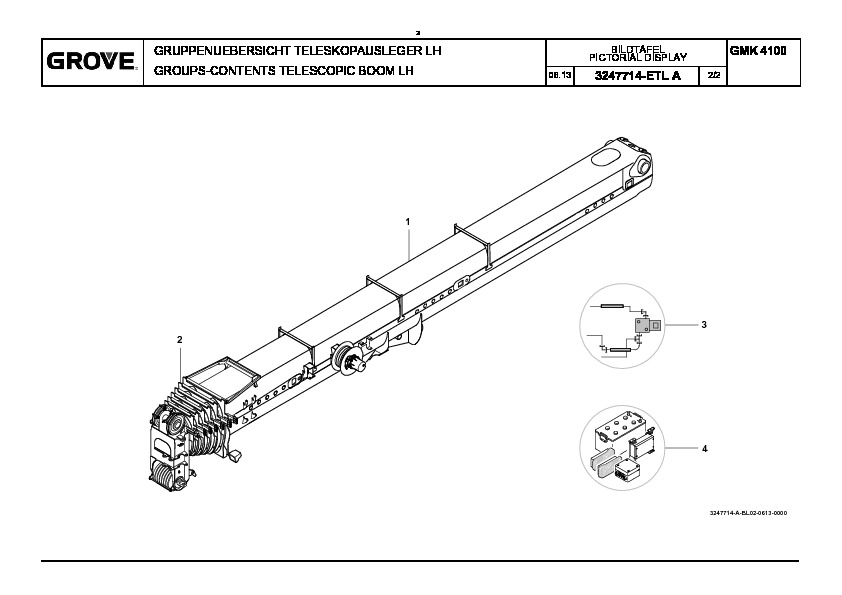

Figure 3247714-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3247715 | TELESCOPIC BOOM |
| 2 | 3247716 | MOUNTING PARTS, BOOM |
| 3 | 3238616 | HYDR. SYSTEM, TELESKOP1C BOOM |
| 4 | 3126356 | E.- SYSTEM |
* Selected parts are automatically added to your RFQ list *
