Figures in which the part appears:
Also known as:
3301686, 03301686, 003301686
3301686, 03301686, 003301686
COVER - Part 3301686 for Grove cranes
Fits these models: Grove GMK 5250-L, Grove GMK 5250L

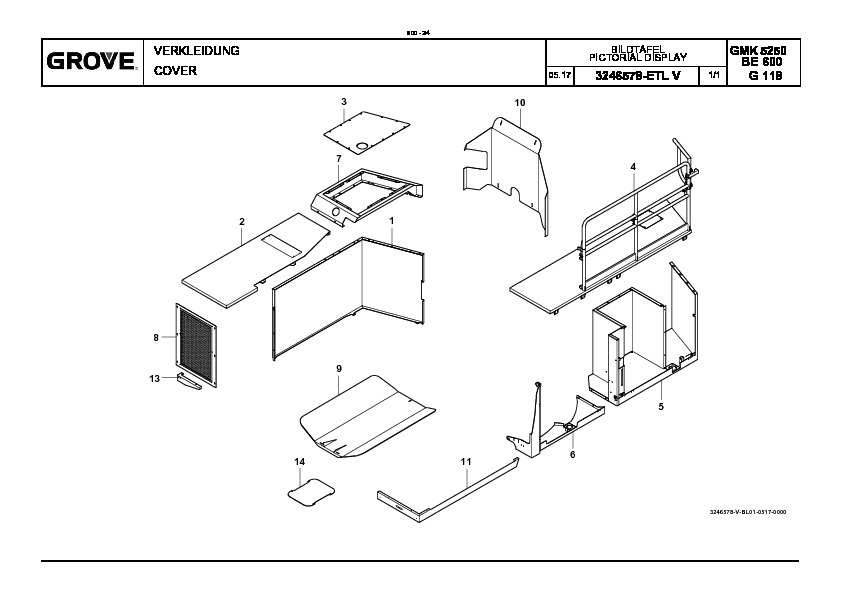

Figure 3246578-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3239681 | COVERING | |
| 2 | 3239683 | COVERING | |
| 3 | 3239696 | COVERING | |
| 4 | 3297093 | COVERING | |
| 5 | 3301670 | BOX | |
| 6 | 3252979 | COVERING | |
| 7 | 3239692 | COVERING | |
| 8 | 3301686 | COVER | |
| 9 | 4179913 | DECKING | |
| 10 | 3272982 | PLATE | |
| 11 | 3272572 | WELDMENT | 3.400 |
| 13 | 3296903 | PLATE | |
| 14 | 3303935 | PLATE |
