Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3315201-ETL (Grove GMK 3050-1 )
3315201-ETL (Grove GMK 3055 )
3315201-ETL (Grove GMK 4100-L )
3315201-ETL (Grove GMK 5095 )
3315201-ETL (Grove GMK 5130-2 )
3315201-ETL (Grove GMK 3055 )
3315201-ETL (Grove GMK 4100-L )
3315201-ETL (Grove GMK 5095 )
3315201-ETL (Grove GMK 5130-2 )
Also known as:
3326324, 03326324, 003326324
3326324, 03326324, 003326324
RUBBER SPRINGS - Part 3326324 for Grove cranes
Fits these models: Grove GMK 3050-1, Grove GMK 3055, Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

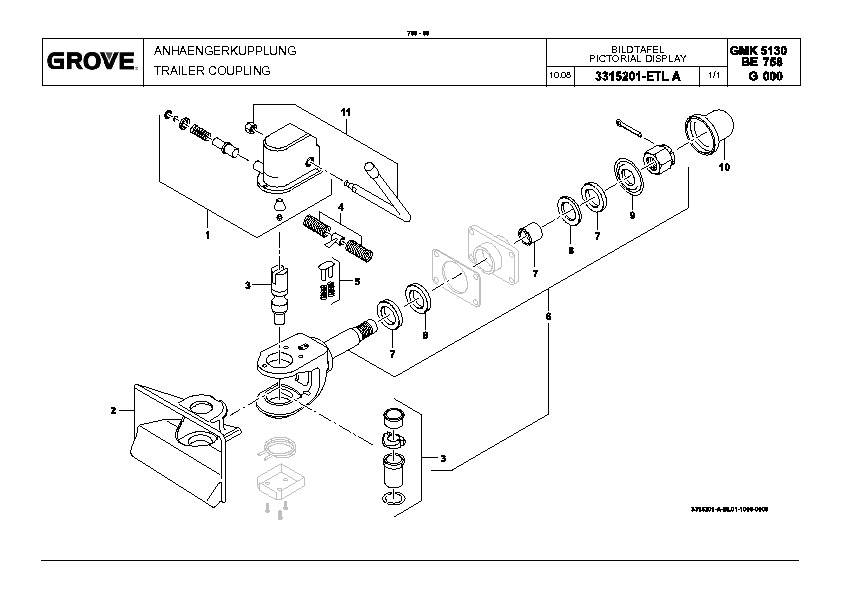

Figure 3315201-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3326318 | AUTOMATIC UNIT, CPL. |
| 2 | 3326319 | COUPLER HEAD |
| 3 | 3326320 | REPAIR KIT CPL. |
| 4 | 3326321 | LOCKING SPRINGS CPL. |
| 5 | 3326322 | STOP BOLT CPL. |
| 6 | 3326323 | PULL ROD CPL. |
| 7 | 3326324 | RUBBER SPRINGS |
| 8 | 3326325 | THRUST WASHERS CPL. |
| 9 | 3326326 | PULL WASHER |
| 10 | 3324442 | END COVER |
| 11 | 3326327 | HAND LEVER |
