Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3324494-ETL (Grove GMK 3050-1 )
3324494-ETL (Grove GMK 3055 )
3324494-ETL (Grove GMK 4100-L )
3324494-ETL (Grove GMK 5095 )
3324494-ETL (Grove GMK 5130-2 )
3324494-ETL (Grove GMK 3055 )
3324494-ETL (Grove GMK 4100-L )
3324494-ETL (Grove GMK 5095 )
3324494-ETL (Grove GMK 5130-2 )
Also known as:
3326331, 03326331, 003326331
3326331, 03326331, 003326331
LOCKING SPRINGS CPL - Part 3326331 for Grove cranes
Fits these models: Grove GMK 3050-1, Grove GMK 3055, Grove GMK 4100-L, Grove GMK 5095, Grove GMK 5130-2

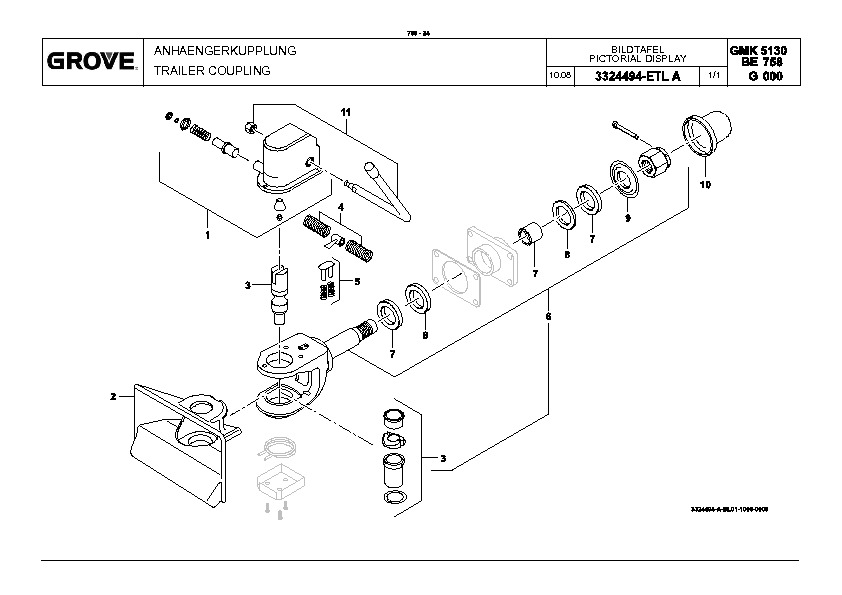

Figure 3324494-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3326328 | AUTOMATIC UNIT, CPL |
| 2 | 3326329 | COUPLER HEAD |
| 3 | 3326330 | REPAIR KIT CPL |
| 4 | 3326331 | LOCKING SPRINGS CPL |
| 5 | 3326332 | STOP BOLT CPL. |
| 6 | 3326333 | PULL ROD CPL |
| 7 | 3326334 | RUBBER SPRINGS |
| 8 | 3326335 | THRUST WASHERS CPL. |
| 9 | 3324444 | CONE WASHER |
| 10 | 3324442 | END COVER |
| 11 | 3326327 | HAND LEVER |
