Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
3327172-ETL (Grove GMK 5170 )
3328104-ETL (Grove GMK 5170 )
3128492-ETL (Grove GMK 5220 )
3327172-ETL (Grove GMK 5220 )
3328104-ETL (Grove GMK 5220 )
3327172-ETL (Grove GMK 6300L )
GMK (Grove GMK )
3328104-ETL (Grove GMK 5170 )
3128492-ETL (Grove GMK 5220 )
3327172-ETL (Grove GMK 5220 )
3328104-ETL (Grove GMK 5220 )
3327172-ETL (Grove GMK 6300L )
GMK (Grove GMK )
Also known as:
3328126, 03328126, 003328126
3328126, 03328126, 003328126
BLADE WITH SCRAPER - Part 3328126 for Grove cranes
Fits these models: Grove GMK, Grove GMK 5170, Grove GMK 5220, Grove GMK 6300L

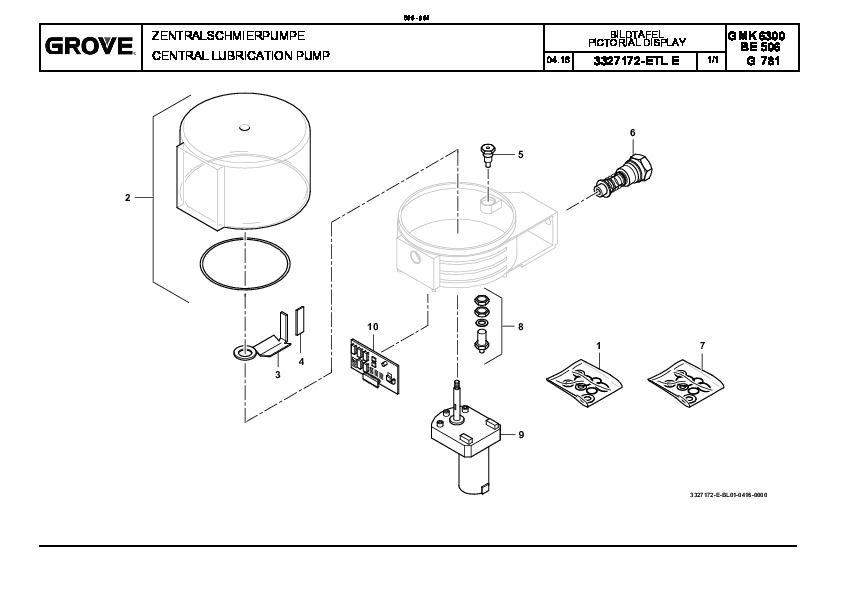

Figure 3327172-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 3328124 | SET OF SEALS, CPL. | 0.03 |
| 2 | 3328125 | RESERVOIR | 0.416 |
| 3 | 3328126 | BLADE WITH SCRAPER | 0.001 |
| 4 | 3328127 | RUBBER SCRAPER | 0.001 |
| 5 | 3324423 | VALVE CASE | 0.02 |
| 6 | 3324424 | PUMP ELEMENT CPL. | |
| 7 | 3324425 | SET OF SEALS | |
| 8 | 3324426 | APPROXIMATE SWITCH | |
| 9 | 3324427 | MOTOR | 0.58 |
| 10 | 3142124 | PRINTED CIRCUIT BOARD | 0.07 |
