Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3100761-ETL (Grove GMK 5220 )
3100761-ETL (Grove GMK 5250L )
GMK (Grove GMK )
Also known as:
3328261, 03328261, 003328261

SPRING RELEASED HOSE DRUM - Part 3328261 for Grove cranes

Fits these models: Grove GMK, Grove GMK 5220, Grove GMK 5250-L, Grove GMK 5250L

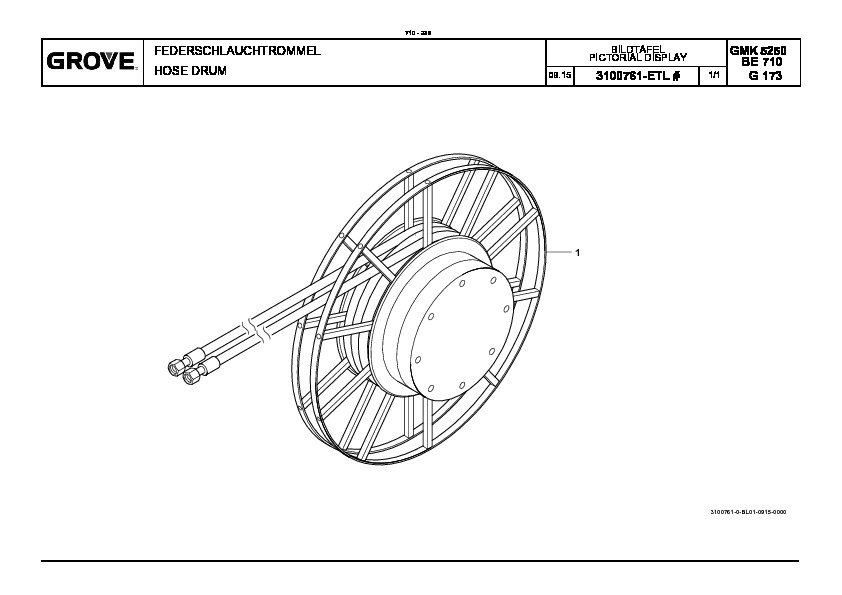

Figure 3100761-ETL:

Pos nr Part number Description Weight in kg
1 3328261 SPRING RELEASED HOSE DRUM 237
* Selected parts are automatically added to your RFQ list *
