Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
3328580, 03328580, 003328580
3328580, 03328580, 003328580
INTERMEDIATE PIPE - Part 3328580 for Grove cranes
Fits these models: Grove GMK 5130-2

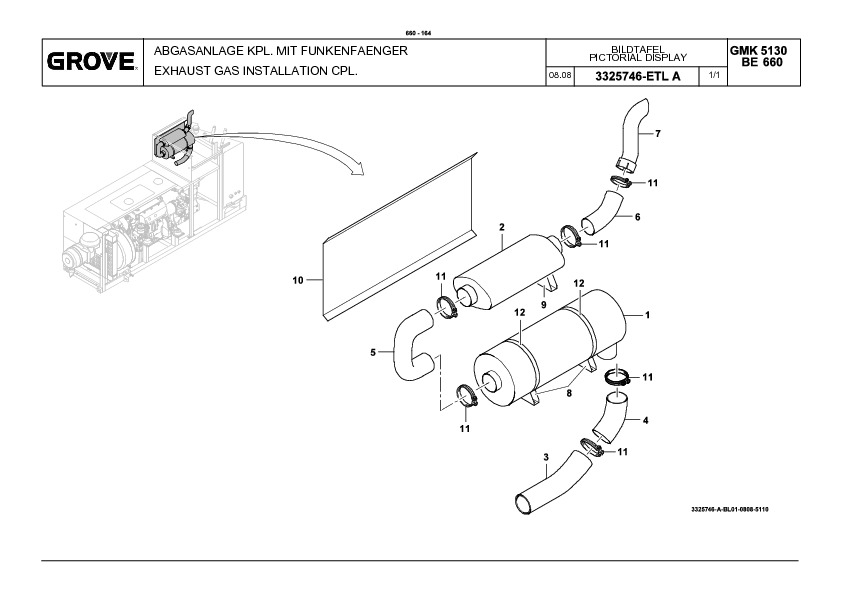

Figure 3325746-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 3328577 | SPARK ARRESTER |
| 2 | 3328578 | SILENCER |
| 3 | 3328579 | FRONT PIPE |
| 4 | 3328580 | INTERMEDIATE PIPE |
| 5 | 3328581 | INTERMEDIATE PIPE |
| 6 | 3328582 | INTERMEDIATE PIPE |
| 7 | 3328583 | EXHAUST TAIL PIPE |
| 8 | 3328584 | HOLDER |
| 9 | 3328585 | HOLDÈR |
| 10 | 3328586 | HEAT SHIELD |
| 11 | 3042561 | CLAMP |
| 12 | 3042562 | CLAMP: |
