Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
4189155, 04189155, 004189155
4189155, 04189155, 004189155
HYDR. SYSTEM, TELESCOPIC JIB - Part 4189155 for Grove cranes
Fits these models: Grove GMK 4080-3, Grove GMK 4090-1

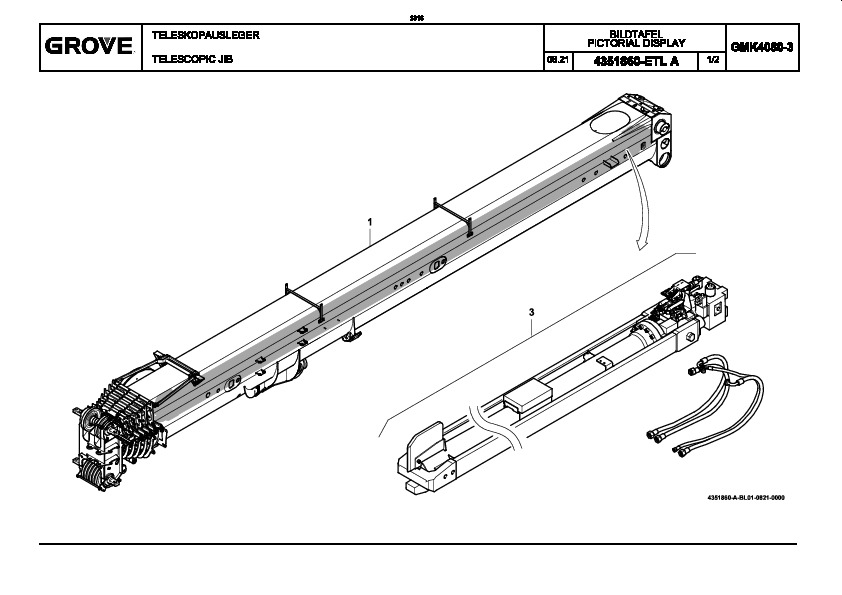

Figure 4351860-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 4351861 | TELESCOPE PIECES CPL. |
| 3 | 4189155 | HYDR. SYSTEM, TELESCOPIC JIB |
| 4 | 4184455 | E.- SYSTEM, TELESCOPIC BOOM |
