Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
4247653, 04247653, 004247653
4247653, 04247653, 004247653
HEAVY DUTY JIB 2 M - Part 4247653 for Grove cranes
Fits these models: Grove GMK 4080-3, Grove GMK 4090-1

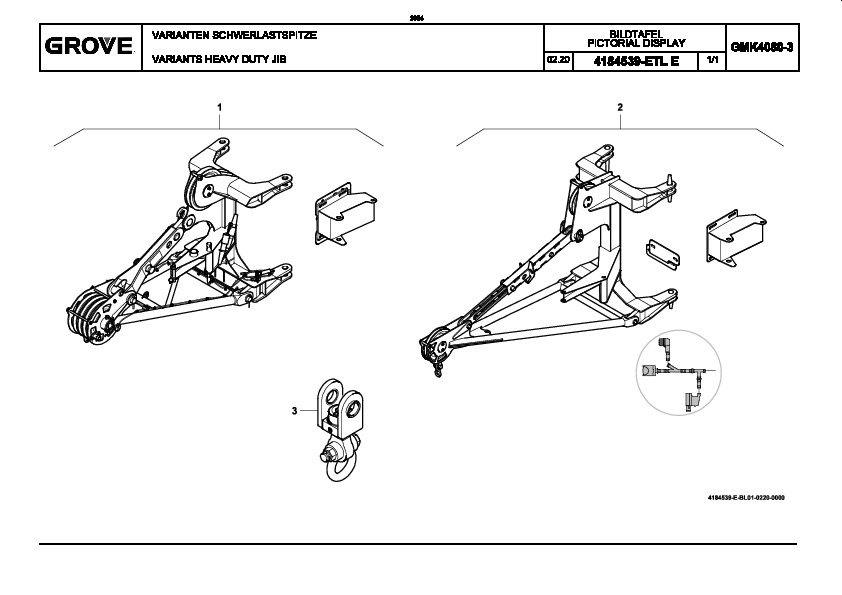

Figure 4184539-ETL:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 4192785 | HEAVY JIB | |
| 2 | 4247653 | HEAVY DUTY JIB 2 M | |
| 3 | 4290080 | FITTING ADPTR UNION IE 60SA-12X122 | 0.150 |
