Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
4309146-ETL (Grove GMK 4080-3 )
GMK 4090-1 (Grove GMK 4090-1 )
Also known as:
4276607, 04276607, 004276607

COVER BACK PANEL RH - Part 4276607 for Grove cranes

Fits these models: Grove GMK 4080-3, Grove GMK 4090-1

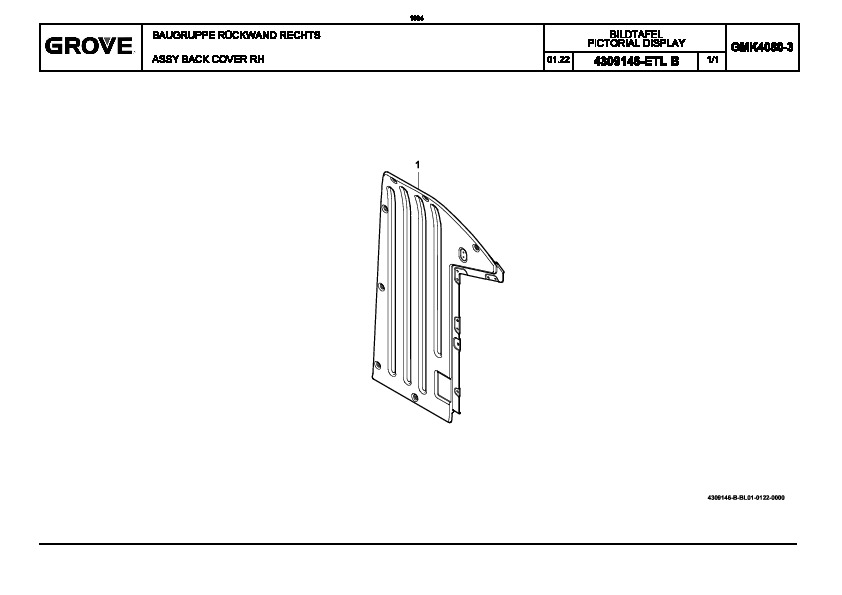

Figure 4309146-ETL:

Pos nr Part number Description
1 4276607 COVER BACK PANEL RH
