Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

4339902-ETL (Grove GMK 4080-3 )
GMK 4090-1 (Grove GMK 4090-1 )

Also known as:
4346893, 04346893, 004346893

BRACKET - Part 4346893 for Grove cranes

Fits these models: Grove GMK 4080-3, Grove GMK 4090-1

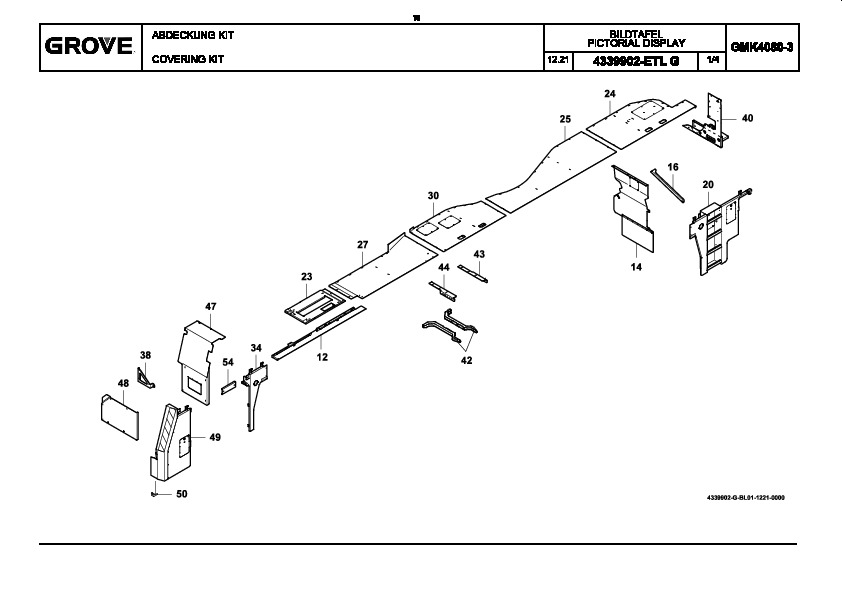

Figure 4339902-ETL:

Pos nr	Part number	Description
1	4189077	PROFILE
2	4225597	PLATE
3	4189078	PROFILE
4	4230773	ASSY.
5	4339693	PROFILE
6	4189132	PROFILE
7	4339694	PROFILE
8	4225595	PROFILE
9	4225596	PROFILE
10	4225617	PLATE
11	4225616	PLATE
12	4346893	BRACKET
13	4225649	PLASH SHIELD
14	4225647	PLASH SHIELD
15	3292685	PLATE
16	3277672	PLATE
17	4352248	COVER
18	4346900	ACCESS REAR RIGHT
19	4347734	COVER ASSY.
20	4346908	ACCESS REAR LEFT
21	4225620	FASTENING ASSY
22	4225622	BRACKET
23	4346892	WELDMENT
24	4351758	COVER ASSY.
25	3292687	PLATE
26	3276474	PLATE
27	4225752	PLATE, ASSY.
28	3276491	PLATE
29	4225666	PLATE, ASSY.
30	4352252	PLATE ASSY.
31	4351761	COVER ASSY.
32	4346886	COVER
33	4346878	BRACKET
34	4353675	COVER
35	4192135	PLATE
36	4192169	PLATE
37	4347733	PLATE
38	3275895	PLATE
39	4352245	COVER ASSY.
40	4351770	COVER ASSY.
41	4341645	COVER ASSY.
42	3307617	BRACKET
43	4225702	PLATE
44	4225703	PLATE
45	3296490	CABLE CANAL
46	4351767	PLATE
47	4346898	SPLASH GUARD ASSY.
48	4351768	COVER ASSY.
49	4353682	COVER ASSY.
50	4341637	PLATE
51	4192166	BRACKET
52	4225765	COVER
53	4341642	PLATE
54	4353681	PLATE
55	4352250	PLATE
