Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
4354010, 004354010
4354010, 004354010
RAIL CURTAIN ARC - Part 4354010 for Grove cranes
Fits these models: Grove GMK 4080-3, Grove GMK 4090-1

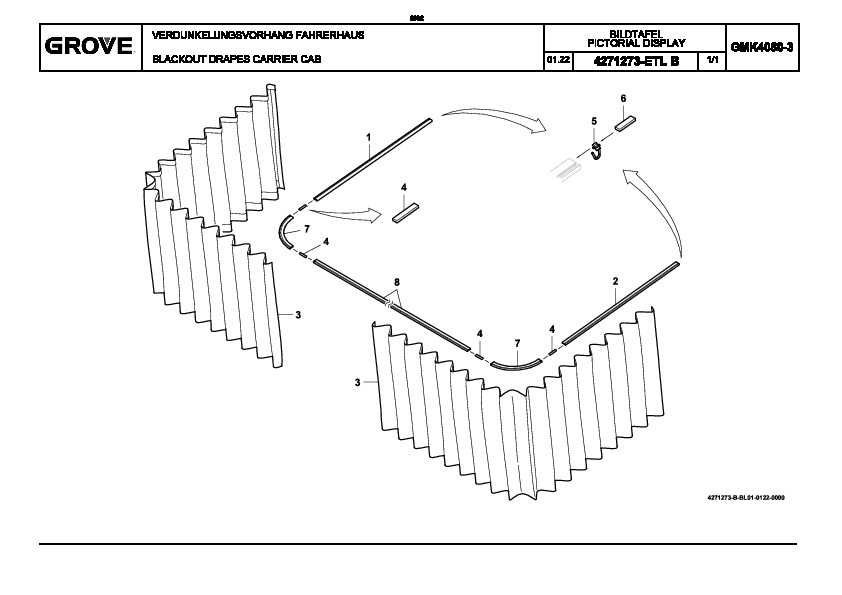

Figure 4271273-ETL:
| Pos nr | Part number | Description |
|---|---|---|
| 1 | 4354008 | RAIL CURTAIN SHORT RIGHT |
| 2 | 4354009 | RAIL CURTAIN SHORT LEFT |
| 3 | 4349075 | BLACKOUT DRAPES CARRIER CAB |
| 4 | 4349071 | RAIL CONNECTOR |
| 5 | 4349070 | X-HINGED GLIDER |
| 6 | 4349072 | END PIECE |
| 7 | 4354010 | RAIL CURTAIN ARC |
| 8 | 4354011 | RAIL CURTAIN LONG |
