Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

1101295 (Grove YB 4411 )

Also known as:
601492, 0601492, 00601492

PIN, CENTERING - Part 601492 for Grove cranes

Fits these models: Grove YB 4411

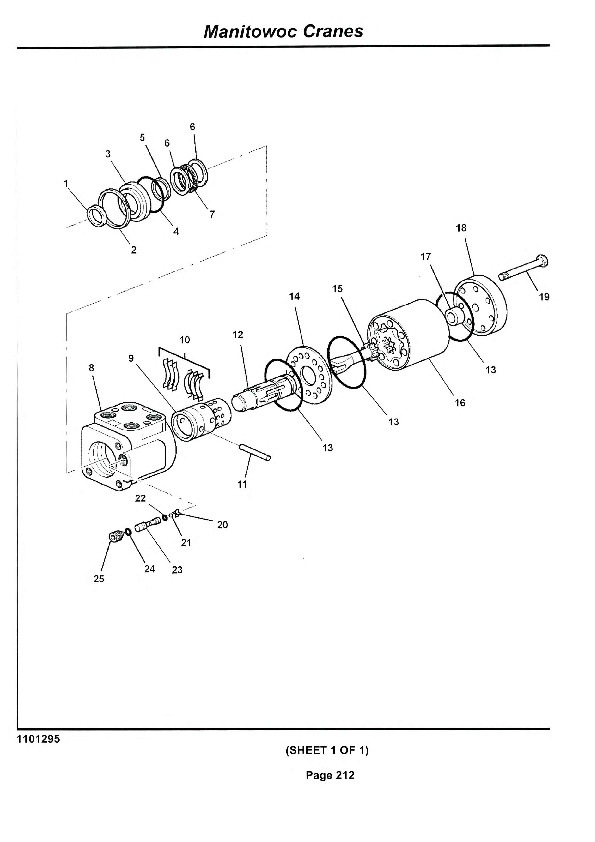

Figure 1101295:

Pos nr	Part number	Description	Weight in kg
1	601476	SEAL	0.001
2	601477	RING	0.001
3	601478	GLAND,BUSHING SEAL	0.001
4	601479	SEAL	0.001
5	1000823	SEAL,RING,QUAD,
6	603475	RACE,BEARING
7	601483	BEARING NEDDLE	0.001
10	1900164	KIT, SPRING, CENTERING
11	601492	PIN, CENTERING
13	601493	SEAL	0.001
14	1900162	PLATE
15	601495	DRIVE
16	1900926	GEROTOR
17	1900927	SPACER
18	1900161	CAP, END
19	1900928	SCREW, CAP
20	601489	RETAINER, CHECK BALL
21	601488	BALL, CHECK
22	601487	SEAL	0.001
23	601486	SEAT
24	601485	SEAL	0.001
25	601484	SCREW, SET
30	1900163	SEAL KIT	0.045
35	601481	KIT, NEEDLE BEARING
