Figures in which the part appears:
Also known as:
721071, 0721071, 00721071
721071, 0721071, 00721071
GUIDE - Part 721071 for Grove cranes
Fits these models: Grove AT 635

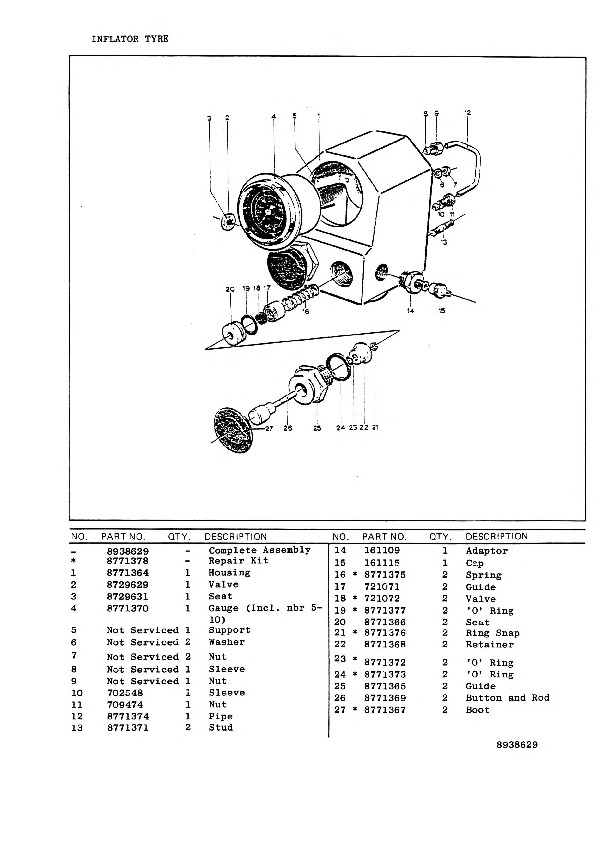

Figure 8938629:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | 8771364 | HOUSING | |
| 2 | 8729629 | VALVE EXHAUST | 0.001 |
| 3 | 8729631 | SEAT | |
| 4 | 8771370 | GAUGE | |
| 10 | 702548 | SLEEVE | |
| 11 | 709474 | NUT | |
| 12 | 8771374 | PIPE | |
| 13 | 8771371 | STUD | |
| 14 | 161109 | ADAPTOR SPEC | 0.001 |
| 15 | 0161115 | CAP VALVE | |
| 16 | 8771375 | SPRING | |
| 17 | 721071 | GUIDE | |
| 17 | 721072 | VALVE | |
| 19 | 8771377 | O-RING | |
| 20 | 8771366 | SEAT | |
| 21 | 8771376 | RING SNAP | |
| 22 | 8771368 | RETAINER | |
| 23 | 8771372 | O-RING | |
| 24 | 8771373 | O-RING | |
| 25 | 8771365 | GUIDE | |
| 26 | 8771369 | BUTTON AND ROD | |
| 27 | 8771367 | BOOT |
