Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
S-80111-69 (Potain Igo 50 )
Also known as:
82013307, 082013307, 0082013307

- Part 82013307 for Potain cranes

Fits these models: Potain Igo 50

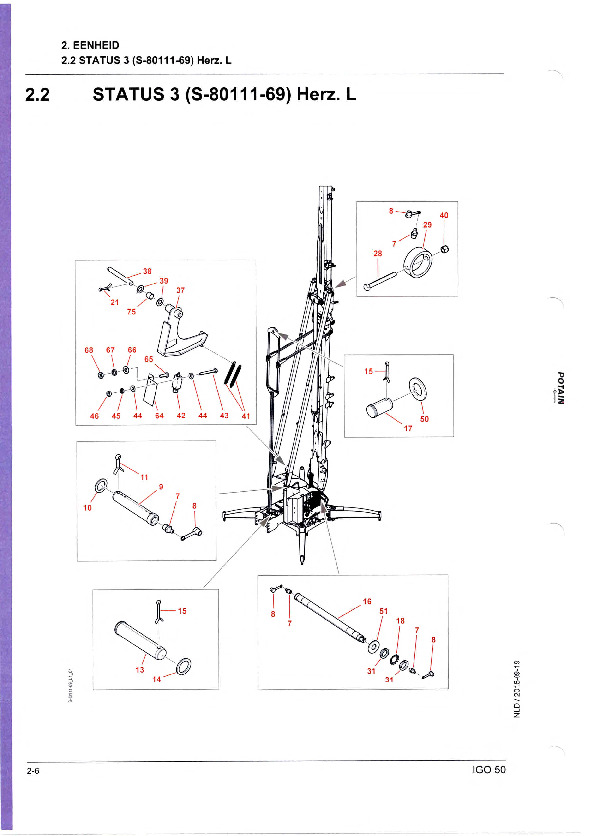

Figure S-80111-69:

Pos nr Part number Description Weight in kg
1 F-80111-81
2 L-80111-63 BOOM
3 B-80111-77 JIB
4 C-13690-77 CABLE LG9194
5 82013333 CABLE LG9194
7 N-00458-05 GREASE NIPPLE 0
8 D-01414-07 COVER 0.01
9 X-19690-74 PIN
10 U-03690-76 WASHER 45X65X5 S355
11 D-00355-61 SPLIT PIN 0.04
12 D-19690-56 PIN D50X685
13 P-19690-43 PIN D55X230 34CRM04
14 V-97112-17 WASHER 55X75X6 S355
15 L-00355-68 SPLIT PIN 0.07
16 W-19690-73 PIN D55X791 FILE
17 A-19690-53 PIN D60X80 34CRM04
18 K-00459-17 NUT LOCK 0.02
19 A-86313-02 ROPE 63
20 P-30690-87 PIN D20X50 34CRM04
21 N-00355-47 SAFETY-PIN 0.01
22 S-71313-50 ROPE 8.58
23 R-82313-01 ROPE 10
24 H-12038-27 WEDGE 0.260
25 P-00368-36 BULLDOG GRIP 0.03
28 E-01338-87 SCREW H M12X110 CL8.8
29 C-17690-70 WASHER 90X70,5X30 S355
30 M-97112-32 WASHER 40X90X8 S355
31 C-01345-06 SLOTTED NUT 0.1
32 L-96112-04 PLATE 0.32
33 X-01329-15 SCREW 0.02
34 V-00350-02 WASHER 0
35 C-00347-09 WASHER 0
36 E-00341-13 NUT 0.140
37 82013307
38 T-20276-28 PIN 0.42
39 C-00350-08 WASHER 0.02
40 E-00345-96 LOCK NUT 0.02
41 G-02380-79 TENSION SPRING 0.06
42 U-27413-19 LIMIT SWITCH 0.085
43 Z-00326-13 SCREW 0.01
44 K-00350-15 WASHER 0
45 V-00347-03 WASHER 0
46 X-00341-07 NUT 0.01
47 H-53413-20 LIMIT SWITCH 0.13
48 X-21369-74 COLLAR 0.08
50 N-01350-22 FLATWASHER 64 140HV FLZN DIN125
51 L-21690-25 WASHER D110X10 S355
52 V-00338-29 SCREW 0.03
53 W-00350-03 WASHER 0
54 E-00347-11 WASHER 0
56 V-07330-29 SCREW 0.02
57 P-71382-01 SPRING 0.33
58 T-99112-92 ARTICULATION 0.57
59 N-02690-43 SUPPORT 0.84
60 82028108 PLATE 310X65 S355 CRIT.3
62 N-00338-22 SCREW 0.02
63 D-01350-13 WASHER 0.23
64 X-97685-12 PLATE PL1125X120 S235
65 Z-00338-09 SCREW 0.01
66 U-00350-01 WASHER 0
67 A-00347-07 WASHER 0.01
68 K-00342-10 NUT 0.01
69 M-00341-66 NUT 0.01
70 Z-09690-35 FLANGE
73 H-00355-42 SPLIT PIN 0.005
74 L-01036-94 SHRINKDOWN PLAST TUB 0.02
75 T-01285-87 SPACER 0.04
* Selected parts are automatically added to your RFQ list *
