Search for Crane Part number
(click on image to open PDF document)
Figures in which the part appears:
Also known as:
82014192, 082014192, 0082014192
82014192, 082014192, 0082014192
TOOTHED RING - Part 82014192 for cranes
Fits these models: IGO 32, Potain IGO 32

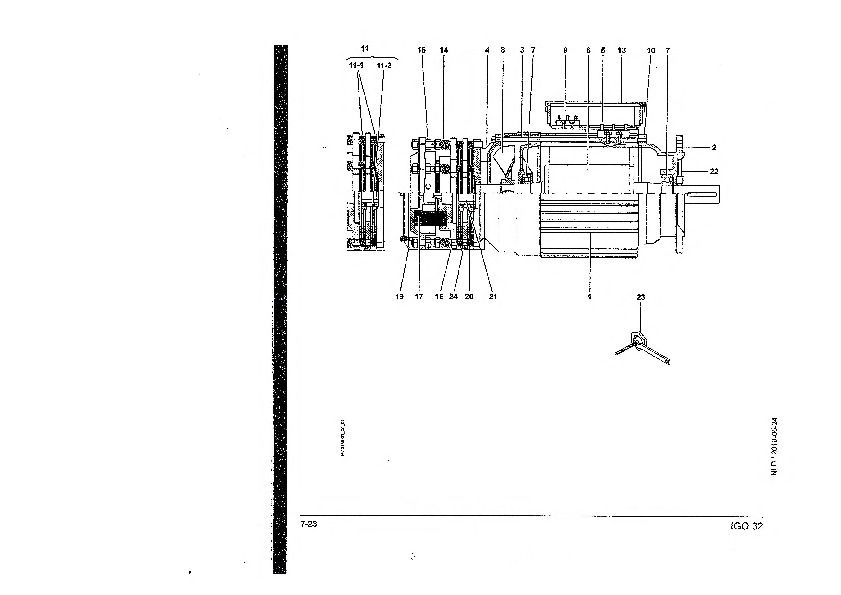

Figure P-83439-07:
| Pos nr | Part number | Description | Weight in kg |
|---|---|---|---|
| 1 | K-91517-09 | STATOR | |
| 2 | M-91517-11 | BEARRING | |
| 3 | E-86517-76 | BEARRING | |
| 4 | N-91517-12 | BEARRING | |
| 5 | V-89517-80 | PLATE | |
| 6 | L-91517-10 | ROTOR | |
| 7 | A-00396-98 | BEARRING | |
| 8 | M-86517-83 | VENTILATOR | |
| 9 | V-90517-61 | BRAKE PLATE | |
| 10 | U-77517-54 | CONNECTING ROD | |
| 11 | 82014453 | SET | 0 |
| 11-1 | P-91517-13 | DISC | 1.440 |
| 11-2 | F-91617-74 | GASKET | |
| 14 | Q-91517-14 | SPRING | 0 |
| 15 | R-91517-16 | SUPPORT | |
| 16 | S-91517-16 | ARMATURE | 6.07 |
| 17 | T-91517-17 | YOKE | 7.85 |
| 18 | W-86517-92 | CONNECTION BOX | |
| 19 | 82031544 | MOTOR COVER | 1.775 |
| 20 | H-86517-56 | SPRING | 0.120 |
| 21 | W-87517-04 | SPLINED SLEEVE | 0.600 |
| 22 | H-91517-30 | SENSOR | 0 |
| 23 | W-86517-46 | LEVER | 0.1 |
| 24 | 82014192 | TOOTHED RING | 0 |
