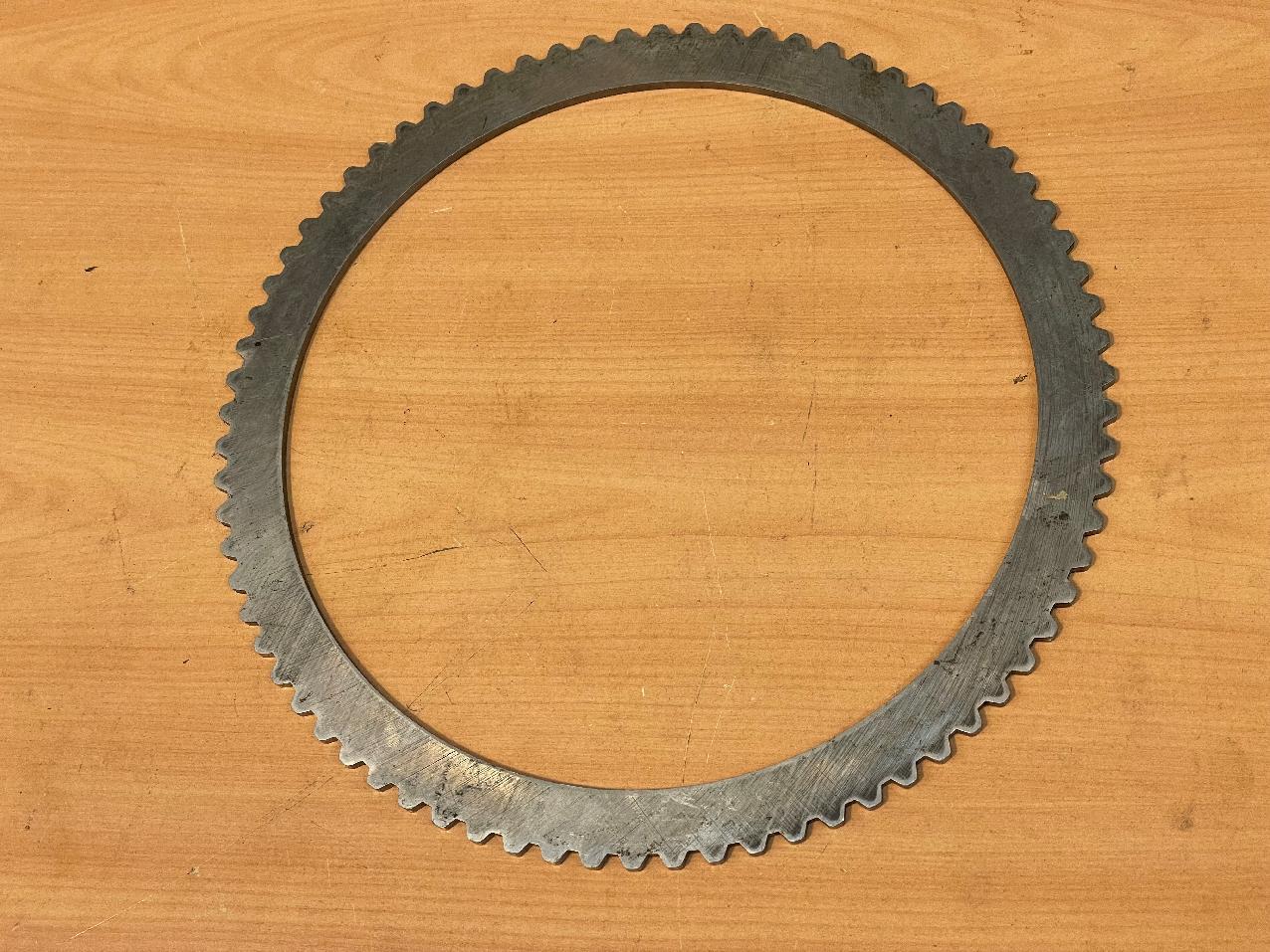

PLATE - Part 9356100298 for Grove cranes

Fits these models: Grove , Grove AT / RT / GMK, Grove AT 750 BE

Figure 7356000693:

Pos nr Part number Description Weight in kg
1 9356100231 PIN, ROLL
2 9904103794 RETAINER, SPRING
3 9904103795 SPRING
3 9904103576 BEARING
4 9904101207 RING. SNAP 0.012
4 9904106024 O-RING 0.006
5 9904103796 LINK
6 9904103797 FORK
7 7950180050 WASHER, LOOK 1/2" I.D. 0.006
7 9904102361 PLUG
7 9904103798 PIN
8 9904103799 PLUG
8 9904103783 O-RING
9 7304000063 CHECK V/V AI
9 9904103800 PLUG
10 9904101049 BALL 0.006
11 9904104012 SPRING, DETENT
12 9904103801 O-RING
13 9904103802 PLUG
14 9904103803 ELBOW
16 9904106258 PLUG
16 9904103804 TUBE
18 9904103805 ELBOW
19 9904103806 BUSHING
20 9904103863 TUBE AND FITTING
21 9904103500 O-RING 0.005
22 9904103807 RAIL
23 9904103753 SEAL,OIL 0.012
24 9904103808 RING
25 9904104000 O RING
25 7950160050 LOCK WASHER 3/8" PEG 0.080
25 9904103809 SHAFT, DRIVE
26 7115161050 HEX HD BOLT 0.103
26 9904103810 BEARING
26 9904103685 CAP SCREW,
27 9904103811 RING
28 9356100216 BEARING
28 9356100286 537
29 9904103812 SLEE VE
30 9904101077 RING, SNAP
30 9904103687 RING
31 9904103813 STUD
31 9904103688 BEARING 0.24
32 9904103785 RING, SNAP
34 9356100350 GEAR
34 9904103815 BEARING
36 9904103781 NUT
38 9356100351 O-RING 0.001
38 9904103816 CLIP
42 9904103691 RETAINER
43 9904103692 SPRING
44 9904103693 PISTON
45 9904103818 DISCONNECT, PUMP
45 9904103694 GASKET
46 9904103695 BODY
47 9904103696 PIN
48 9904101103 STOP
49 9904103699 O-RING 0.001
50 7950170050 WASHER, LOOK 7/16" I.D. 0.004
51 9904103819 RAIL
52 9904101102 PLUG
52 9904104302 SEAL, OIL 0.020
55 9904103820 HOUSING
56 9904103821 HUB
57 9904102383 NUT. FLANGE
57 9904103822 SHAFT
58 9904100983 WASHER
58 9904103823 RING, SNAP
59 7755325000 SEAL 0.004
60 9904100982 FLANGE OUTPUT
61 9904103701 SEAL. OIL 0.080
62 9904101196 NUT
64 9904101194 STUD
65 9904103702 SEAL & RETAINER
66 9904103703 GASKET
67 9904103704 BEARING
68 9904103705 SHAFT
70 9904103707 RING, PISTON
73 9904103711 SPRING
74 9904103710 RING, PISTON 0.005
75 9904101215 RING. SNAP 0.032
77 9904101217 SCREW
82 9356100248 SPACER
83 9904103719 RING, SNAP
84 9356100223 BEARING 1.262
86 9904103722 O-RING
88 9356100328 RING, BACKING
90 9904103723 RING 0.400
91 9904103727 BAFFLE, OIL 6.350
92 9904103728 RING. SEAL 0.060
93 9904103663 SEAL, OIL 0.088
96 9356100253 LOCKUP PISTON
98 9356100297 DISC
99 9356100256 DISC LOCKUP 0.635
103 9356100332 SCREW
105 9356100259 O-RING
112 9904103686 BEARING 2.430
113 9356100226 O-RING 0.010
117 9356100267 SPRING.EXPANDER
124 9904103733 PLATE
