Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
2220666-ETL (Krupp KMK 4070 )
2228084-ETL (Krupp KMK 4070 )
2226312-ETL (Krupp KMK 4070 )
2227126-ETL (Krupp KMK 4070 )

Also known as:
1067741, 01067741, 001067741
Parts for Krupp 140 GMT-AT, Figure 2220666-ETL:

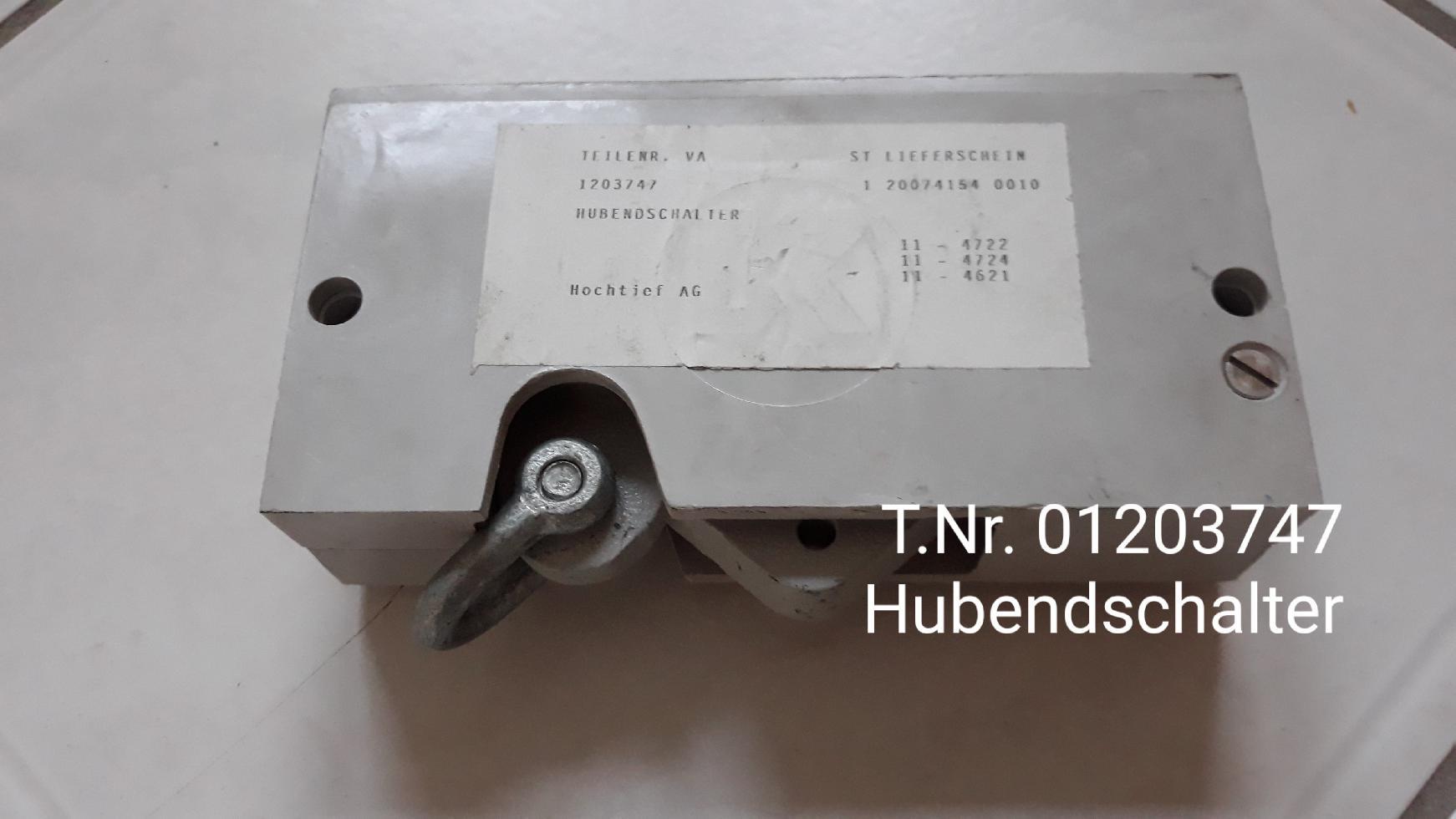

Part Number 1067741: SCHALTER,HUBEND-
Pos nr Part number Description Weight in kg
1 1677153 CYLINDRICAL ROLLER BEARING 2.140
1 2229870 ROPE PULLEY 418, ASSEMBLY 7.100
1 2309368 ROPE PULLEY 7.340
2 1923388 ACHSE,KOPF- 30 40
3 1677850 HINGED AXLE 42.4
4 1065128 SPACER RING 0.2
5 1065255 SPACER RING 0.07
6 1370710 SPACER RING 0.86
7 2210610 SPACER RING
8 1685285 SPACER RING
9 1930538 PIN 1.26
10 1684770 PIN 1.580
12 2252655 AXIE S11RRUP
14 1930536 HALTER,ACHS- R 1.09
19 1923389 SCHEIBE
22 1571576 FÜHRUNG 0.44
23 1930129 RIEGEL,DRUCK- 1.08
24 1923698 FUEHRUNG,GELENK-
25 1930001 MOUN11NG PIECE
26 1923692 PLATTE,GLEIT- 0.528
29 1930130 ACHSE
30 1930607 AXLE STIRRUP 0.16
35 1574840 SUPPORTING ROLLER 1.3
37 1930144 MOUN11NG PIECE
45 1930016 SLIDE PAD SUPPORT
46 1923688 HALTERUNG GS-E
47 1923691 PLATTE,GLEIT- 0.610
48 1930124 ACHSE
54 2215203 PIN
57 2215202 PIN
60 1574839 SUPPORTING ROLLER 1.58
62 1930143 MOUN11NG PIECE
63 1068472 SUPPORTING ROLLER 1.76
65 1930142 MOUN11NG PIECE
66 1930127 PIN
68 1969185 CVUNDER CAGE
69 1923696 KUFE 2.35
74 1969183 EICFENSION
75 1923695 RUNNER 2.8
76 1571571 GLEITSTUECK PA 0.09
77 1574835 PIN
79 1930947 SLIDING PIECE 1.6
80 1930948 SLIDER 1.8
81 1930150 WIPPE 8
82 1930152 ROCKER 14
87 3004494 GUIDE 2.6
88 1930145 PIN
89 1923694 FÜHRUNG 0.13
90 1923693 FÜHRUNG 0.1
91 1376200 AXLE STIRRUP
93 1067552 RETAINING PIN 0.16
94 1930126 PIN
96 1574797 BAR
97 1930146 AXLE
98 1930125 PIN
99 1923699 BUCHSE WERKSTO 5.7
100 1930128 AXLE GUARD
102 0209834 LUBRICATION NIPPLE 0.005
103 1930930 AXLE
104 2215142 AXLE S11RRUP
105 0553202 RADIAL PIVOTING BEARING 14.52
107 1376203 SPAER RING
112 2251000 SPACER RING 0.2
113 0433858 LUBRICATING NIPPLE 0.001
113 0433658 LUBRICA110N NTPPLE
115 0028527 RETAINING RING 0.02
123 1678177 ROLLER TYP NOZZLE 0.490
124 2305854 MOUN11NG PIECE
130 2304349 LIFTING LIMIT SWITCH, WEIGHT 6.750
132 1927056 MEGI-BUFFER 0.055
132 1970017 HALTERUNG LMB-GE
132 1930532 MOUNTING PIECE
134 0435784 SHACKLE 1.32
135 1930276 ROPE SLING
139 1067741 SCHALTER,HUBEND- 1.235
139 1570940 MIKRO SWITCH 0.060
139 1203747 LIFTING LIMIT SWITCH
143 1930928 ADJUSTMENT PIN 0.18
145 2079614 RIEGEL,DRUCK-
148 1370032 SPACER RING 1
