Parts for Grove GMK 6220L, Figure 2221564-ETL:

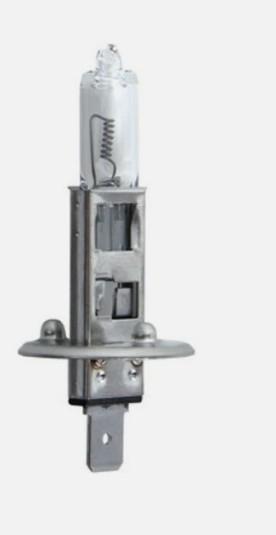

Part Number 0438912: BULB (H1, 24 V, 70 W)

Pos nr	Part number	Description	Weight in kg
1	2225263	CABLE HARNESS FOR SUPERSTRUCTURE
6	1071354	TEMPERATURE TRANSMITTER	0.030
7	1670611	ROTARY BEACON	1.060
7.01.01	1576840	GLASS FOR LAMP	0.310
7.01.02	1576839	SEAL
7.01.03	0438912	BULB (H1, 24 V, 70 W)	0.015
8	1204420	PLUG CASIGN	0.005
9	2212602	CONTROL LINE (PER METER)	0.1
10	1370502	CABLE CONNECTION	0.03
11	2087349	ELECTRICAL PARTS FOR UGHTING SYSTEM
12	0553487	SINGAL HORN	0.54
13	1897253	ELECTRICAL PARTS FOR PUSH BUTTON UNIT
15	1930208	HOUSING	0.15
16	1930206	BUSH INSERT	0.06
17	2250690	BEARING 4.92 OD X 3.15 ID X 2.36 WIDE	0.001
18	0222789	GABLE HARNESS
19	0556228	DOSE,STECK- DIN	2
19	0933074	ELECTAICAL PARTS, PLUG AND SOCKET CONNECT1ON ROTATING FLASHING LIGHT
20	2212600	BAR|1/4 X 1 1/2 X 10 PC	0.454
20	0435706	PLUG
20	3004308	ELEGTAICAL PARTS, PLUG AND SOCKET CONNECTION ROTATING FLASHING LIGHT
20	1201836	PROTECTION CAP	0.01
