PPM D 23345-49 - NUT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A00 AB25-0 (PPM 280 ATT )
A01 A39-10 (PPM 280 ATT )
A05 A83-3 (PPM 280 ATT )
A13 D77-0 (PPM 280 ATT CAB FLOOR ASSEMBLY)
B05 E16-0 (PPM 280 ATT )
B51 J10-0 (PPM 280 ATT )
B51 J11-0 (PPM 280 ATT )
B05 G110-0 (PPM 280 ATT HEATING SYSTEM)
C21 F31-2 (PPM 280 ATT STEERING COLUMN)
D04 B16-3 (PPM 280 ATT REAR AXLE ASSEMBLY)
D04 B15-5 (PPM 280 ATT FRONT AXLE ASSEMBLY)
F30 V316-0 (PPM 280 ATT )
F30 V230-1 (PPM 280 ATT ELECTRO VALVE ASSEMBLY)
F30 V100-2 (PPM 280 ATT )
J02 A142-1 (PPM 280 ATT CONNECTION BLOCK)
J02 A141-0 (PPM 280 ATT CONNECTION BLOCK)
J02 A140-0 (PPM 280 ATT CONNECTION BLOCK)
J02 A139-0 (PPM 280 ATT CONNECTION BLOCK)
J02 A67-2 (PPM 280 ATT AXLE BRAKE VALVE)
J02 A66-2 (PPM 280 ATT SAFETY RELAIS VALVE)
K01 H132-0 (PPM 280 ATT BATTERIES ASSEMBLY )

Also known as:
D 23345-49 , D 2334549

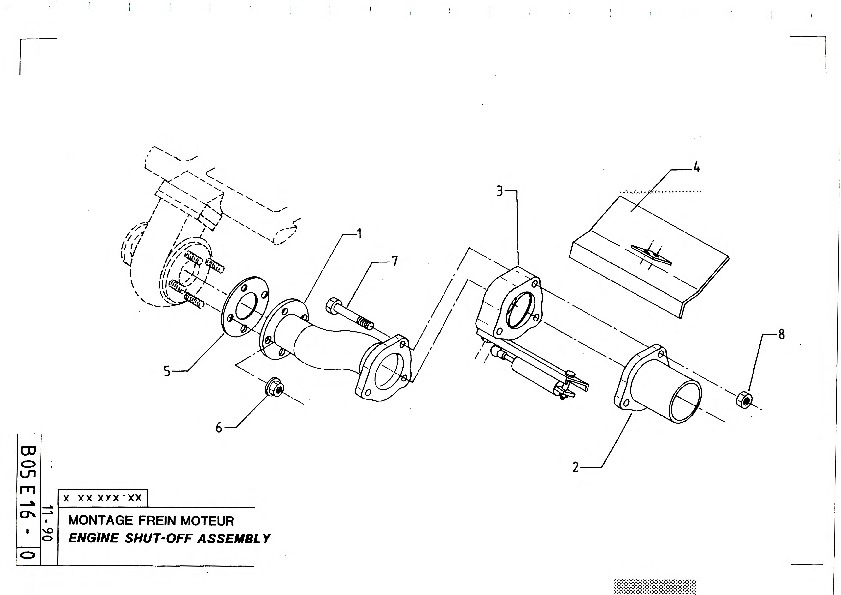

Parts for PPM 480 ATT, Figure B05 E16-0:
Part Number D 23345-49 : NUT

Pos nr	Part number	Description
1	N 41501-32	END FITTING
2	M 41501-31	END FITTING
3	N 78462-78	LOCKING
4	N 87438-99	PLATE
5	V 95460-08	SEAL
6	D 23345-49	NUT
7	R 00326-75	BOLT
8	N 00341-67	NUT
