PPM D 23345-49 - NUT

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A00 AB25-0 (PPM 280 ATT )
A01 A39-10 (PPM 280 ATT )
A05 A83-3 (PPM 280 ATT )
A13 D77-0 (PPM 280 ATT CAB FLOOR ASSEMBLY)
B05 E16-0 (PPM 280 ATT )
B51 J10-0 (PPM 280 ATT )
B51 J11-0 (PPM 280 ATT )
B05 G110-0 (PPM 280 ATT HEATING SYSTEM)
C21 F31-2 (PPM 280 ATT STEERING COLUMN)
D04 B16-3 (PPM 280 ATT REAR AXLE ASSEMBLY)
D04 B15-5 (PPM 280 ATT FRONT AXLE ASSEMBLY)
F30 V316-0 (PPM 280 ATT )
F30 V230-1 (PPM 280 ATT ELECTRO VALVE ASSEMBLY)
F30 V100-2 (PPM 280 ATT )
J02 A142-1 (PPM 280 ATT CONNECTION BLOCK)
J02 A141-0 (PPM 280 ATT CONNECTION BLOCK)
J02 A140-0 (PPM 280 ATT CONNECTION BLOCK)
J02 A139-0 (PPM 280 ATT CONNECTION BLOCK)
J02 A67-2 (PPM 280 ATT AXLE BRAKE VALVE)
J02 A66-2 (PPM 280 ATT SAFETY RELAIS VALVE)
K01 H132-0 (PPM 280 ATT BATTERIES ASSEMBLY )

Also known as:
D 23345-49 , D 2334549

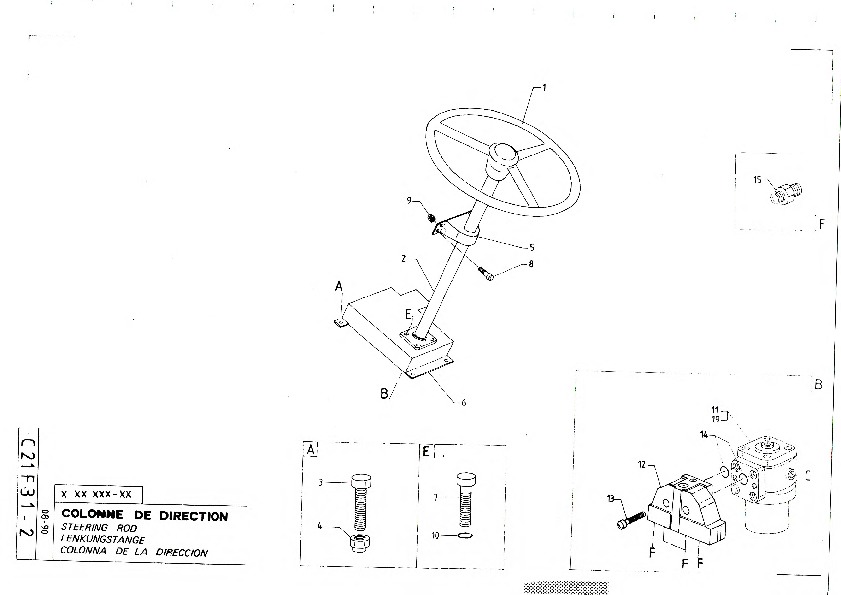

Parts for PPM 480 ATT, Figure C21 F31-2:
Part Number D 23345-49 : NUT

Pos nr	Part number	Description
1	D 53427-88	WHEEL
2	N 30432-80	STEERING LINK
3	E 00338-14	BOLT
4	D 23345-49	NUT
5	A 64282-01	SUPPORT
6	R 44403-72	SUPPORT
7	J 12330-38	BOLT
8	X 00329-11	BOLT
9	C 23345-48	NUT
10	W 00329-10	BOLT
11	G 23377-72	PUMP
12	B 28436-98	BLOCK
13	Q 01329-08	BOLT
14	A 00304-29	O-RING
15	S 17375-05	UNION
19	G 04496-10	SEALS SET
