PPM C 00347-09 - WASHER

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

A01 A39-10 (PPM 280 ATT )
A13 A97-5 (PPM 280 ATT )
A13 D77-0 (PPM 280 ATT CAB FLOOR ASSEMBLY)
A17 M28-1 (PPM 280 ATT GIRDER ASSEMBLY)
B51 J12-0 (PPM 280 ATT )
C15 C17A-0 (PPM 280 ATT TRANSFERT BOX)
F30 V320-0 (PPM 280 ATT )
F30 V288-1 (PPM 280 ATT HYDRAULIC BLOCK ASSEMBLY)
F30 V101-4 (PPM 280 ATT )
F30 C324-0 (PPM 280 ATT )
K17 N06-0 (PPM 280 ATT )
K17 M26-0 (PPM 280 ATT )
K12 A46-0 (PPM 280 ATT ELECTRIC CIRCUIT - BOOM )
PM14 A22-0 (PPM 280 ATT HIGH LIMIT SWITCH )
PM01 D77-0 (PPM 280 ATT )
PM01 D76-0 (PPM 280 ATT )

Also known as:
C 00347-09, C 0034709

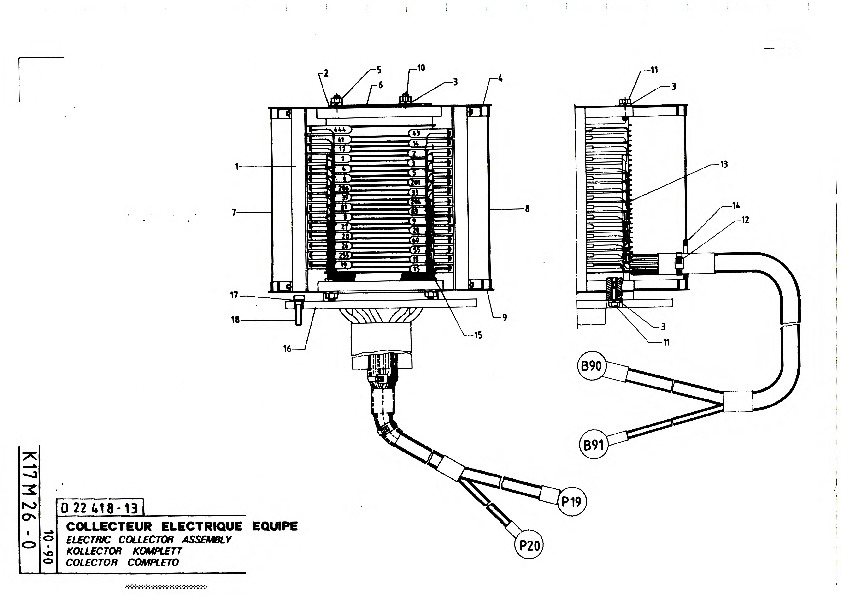

Parts for PPM 480 ATT, Figure K17 M26-0:
Part Number C 00347-09: WASHER

Pos nr	Part number	Description
	D 22418-13	COLLECTOR
1	X 10418-75	COLLECTOR
2	E 37403-79	PROTECTOR
3	A 00347-07	WASHER
4	F 60301-68	COVER PLATE
5	C 00361-11	NUT
6	E 19460-11	SEAL
7	X 30416-49	COVER
8	Z 30414-50	COVER
9	H 00326-21	BOLT
9	K 40301-38	COVER PLATE
10	G 06277-60	ROD
12	V 03369-23	COLLAR
13	X 06368-14	BULLDOG GRIP
14	E 14414-14	GUIDE
15	K 00342-10	NUT
16	R 41501-58	COLLECTOR
17	C 00347-09	WASHER
18	H 00329-20	BOLT
