2309902-ETL (Grove GMK 3050 AXLE DRIVE)
2314070-ETL (Grove GMK 3050 TRANSFER CASE (KESSLER))
2313318-ETL (Grove GMK 3050 AXLE DRIVE)

Parts for Grove GMK 6400, Figure 2309902-ETL:

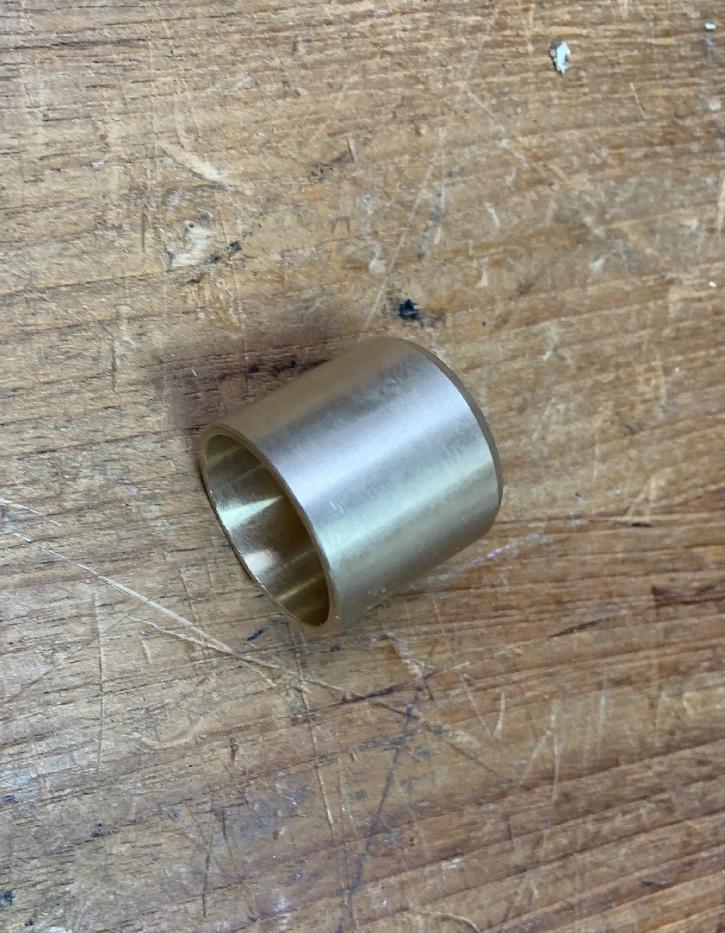

Part Number 1925729: BEARING BUSH

Pos nr	Part number	Description	Weight in kg
1	2309026	AXLE HOUSING
2	1925785	SCREW PLUG	0.08
3	1925343	SEALING RING	0.005
4	1371216	SCREW PLUG	0.23
5	1371208	SEALING RING	0.005
6	0117131	RING SEALING	0.001
7	1925788	AIR BLEEDER	0.05
9	2309020	FLANGE
10	0437306	HEXAGON SOCKET HEAD CAP SCREW	0.02
11	2309022	COVER	10.26
12	2309021	O-RING, 265 X 4	0.025
13	0437182	HEXAGON SCREW M10X25	0.120
14	1925719	COVER
16	2309027	DIFFERENTIAL HOUSING	15.800
17	1925722	PIN (NO HOLES) 5.000 DIA X 8.25 LG	20.684
18	1925723	THRUST WASHER	0.070
19	1925724	DIFFERENTIAL SIDE GEAR	0.9
20	1925725	DIFFERENTIAL BEVEL GEAR	0.66
21	1925726	DIFFERENTIAL SPIDER	1.372
22	1925727	BEARING BUSH	0.075
23	1925349	TAPERED ROLLER BEARING	1.37
24	2309029	ADJUSTING RING	0.730
25	0118438	HEXAGON SOCKET HEAD CAP SCREW	0.04
26	2309030	HEXAGON SOCKET HEAD CAP SCREW	0.005
28	2313409	HEXAGON BOLT
29	1925729	BEARING BUSH	0.02
30	2309032	SLIDING SLEEVE	0.62
31	2309033	SHIFT FORK
32	2309034	PISTON	0.13
33	2309035	BACK-UP WASHER	0.010
34	2212311	O-RING, 32 X 5	0.005
35	2309038	O-RING, 50 X 3	0.005
36	1925786	PRESSURE SPRING	0.03
37	2309055	HEXAGON SCREW	0.02
38	2309039	CYLINDER	0.26
39	1684575	PRESSURE SWITCH	0.300
40	0117137	RING SEALING	0.001
41	2313410	PINION AND RING GEAR
43	2313411	SHAFT SEALING RING	0.12
44	0433890	BEARING	0.001
45	0434651	TAPERED ROLLER BEARING	2
46	1371192	SPACER RING	0.04
47	1371213	SPACER WASHER	0.17
48	2313412	DRIVE FLANGE	3.2
49	1684119	DRIVE-IN NUT	0.420
50	0439547	HEXAGON SCREW
51	2309049	SHAFT	5.72
52	2309050	SHAFT	5.72
53	0434575	GROOVED BALL BEARING	1.085
54	2252487	BACK-UP WASHER	0.06
55	1207981	CIRCLIP
56	2309048	ROTARY SHAFT SEAL	0.055
57	1069223	O-RING	0.1
58	2309023	O-RING, 108 X 3	0.005
60	2309037	THREADED BUSH	0.090
61	2309051	RING
62	0028503	CIRCLIP	0.095
63	2309054	O-RING, 120 X 3	0.005
64	1686701	WASHER M8	0.005
69	2309036	ROD	0.29
