Parts for Grove GMK 4090-1, Figure 3055066-ETL:

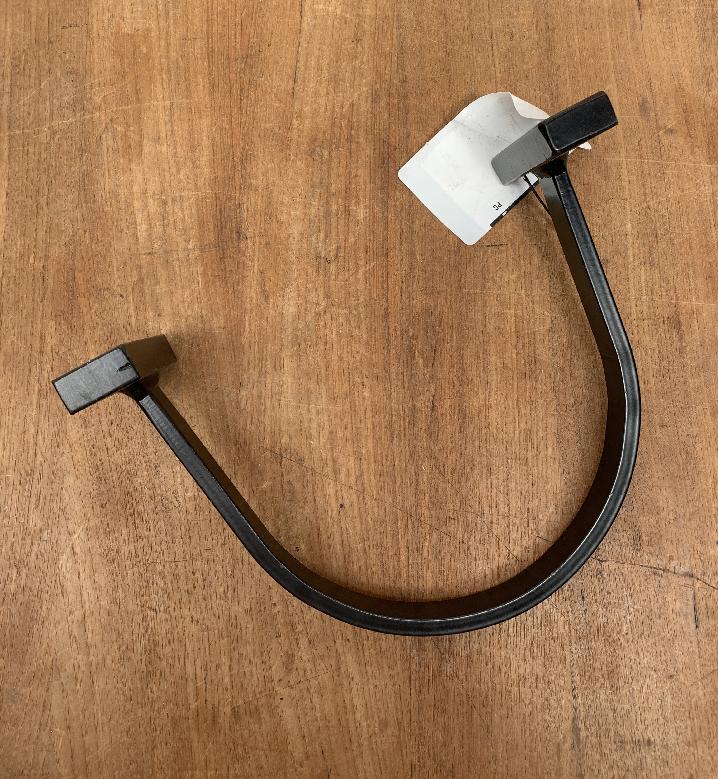

Part Number 3006265: STIRRUP

Pos nr	Part number	Description	Weight in kg
1	2214658	AXLE DRIVE	160
1	2252809	CARDAN SHAFT	48
1	3066055	WHEEL DRIVE	259
1	3066056	WHEEL DRIVE
1	2222611	AXLE LINE
2	2252805	CARDAN SHAFT	39
2	3055062	AXLE LINE
2	2214659	AXLE DRIVE	194
3	2214660	AXLE DRIVE	245
3	2222610	AXLE LINE
3	3066052	WHEEL DRIVE
3	3066051	WHEEL DRIVE
4	3041145	AXLE DRIVE	196
4	2314993	EDDY-CURRENT BRAKE (TELMA)	266
4	3041149	ADJUSTMENT PLATE	0.420
4	0055069	AXLE LINE WITH TELMA-RETARDER
11	3055056	WHEEL COMPLETE (SELECTION)
13	2251293	SUSPENSION CYLINDER ASSEMBLY	140
14	3006265	STIRRUP	2.900
15	2215105	SHIM	0.22
16	2255320	LIQUID LEVEL INDICATOR	15.780
18	2255889	SLIDE RING	0.005
19	2255888	THREADED BUSH	0.005
21	2216636	DIRT SCRAPER	0.085
31	3006271	LEVER I INCL. 2 X BUSH	5.200
31	2255728	LEVER I	5.200
31	2313586	PLAIN BEARING BUSH	0.04
32	3006273	LEVER 2 INCL. 2 X BUSH	7.1
32	2255730	LEVER II	7.1
33	3011767	AXLE	1.3
34	2219672	FLANGE BUSHING	0.1
35	2313858	WASHER	0.36
36	1930099	THRUST WASHER	0.012
37	2254765	THRUST WASHER	0.02
38	2314166	SEALING RING	0.007
39	2251079	SEALING RING	0.01
40	2314490	WASHER	0.03
42	1930105	AXIAL- BEARING	0.16
60	0437136	TUBE 12X1,5 (PER METER)	2
62	3319201	FILLING HOSE
76	2314927	CONSOLE
81	3055078	HOLDER	0.55
82	3055079	HEAT PROTECTIVE PLATE
83	3055080	HEAT PROTECTIVE PLATE
