Parts for Grove GMK 6400, Figure 3198891-ETL:

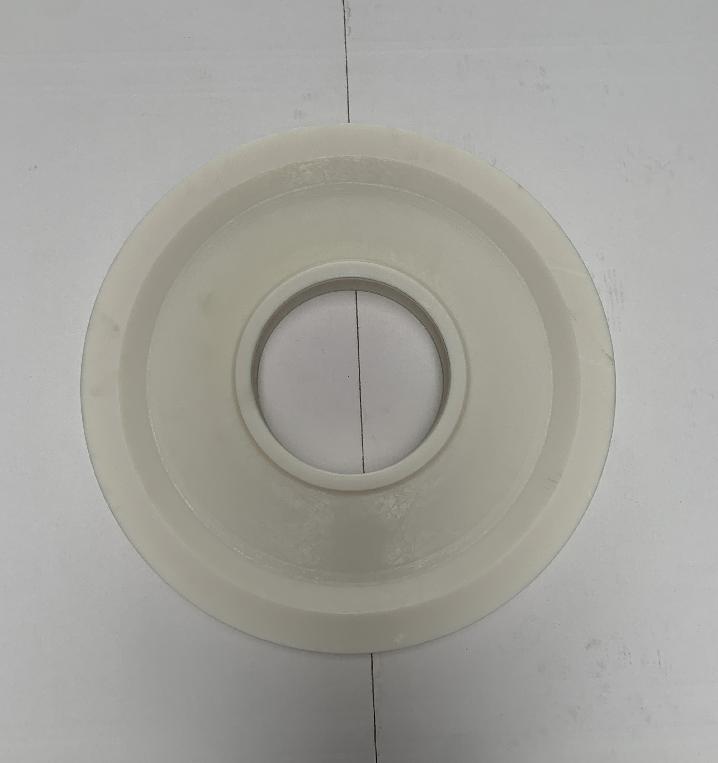

Part Number 2081587: SHEAVE CPL.

Pos nr	Part number	Description	Weight in kg
1	2318275	GRID
2	3321130	GRID
3	2318278	C-CLIP
4	3198777	ATTACHING PARTS, ROD HAND RAIL
5	2081587	SHEAVE CPL.	16
6	1206271	SPACER RING, OUTSIDE	0.200
7	2316985	SPACER RING (L=2)	0.06
008	3007444	AXLE	6.67
9	3005868	COVER	2.755
10	1679615	HEXAGON BOLT
11	0437746	HEXAGON NUT	0.034
12	3066456	PIN
13	3066495	LOCKING PIN	0.25
14	3184147	STIRRUP
15	3184155	STIRRUP
16	2211408	PRESSURE PLATE
17	435139	HEXAGON SOCKET HEAD CAP SCREW
18	0437530	WASHER 16	0.01
19	1677022	PLATFORM	61.689
20	3184065	LOCKING PLATE
21	0437176	HEXAGON SCREW M8	0.01
22	0437743	HEXAGON NUT M8	0.0
23	3066339	SUPPORT
24	0437202	HEXAGON SCREW	0.08
25	0437645	HEXAGON NUT	0.030
26	0437745	HEXAGON NUT M12	0.015
27	3152614	SUPPORTING ROLLER
