Parts for Grove GMK 4090-1, Figure 3205398-ETL:

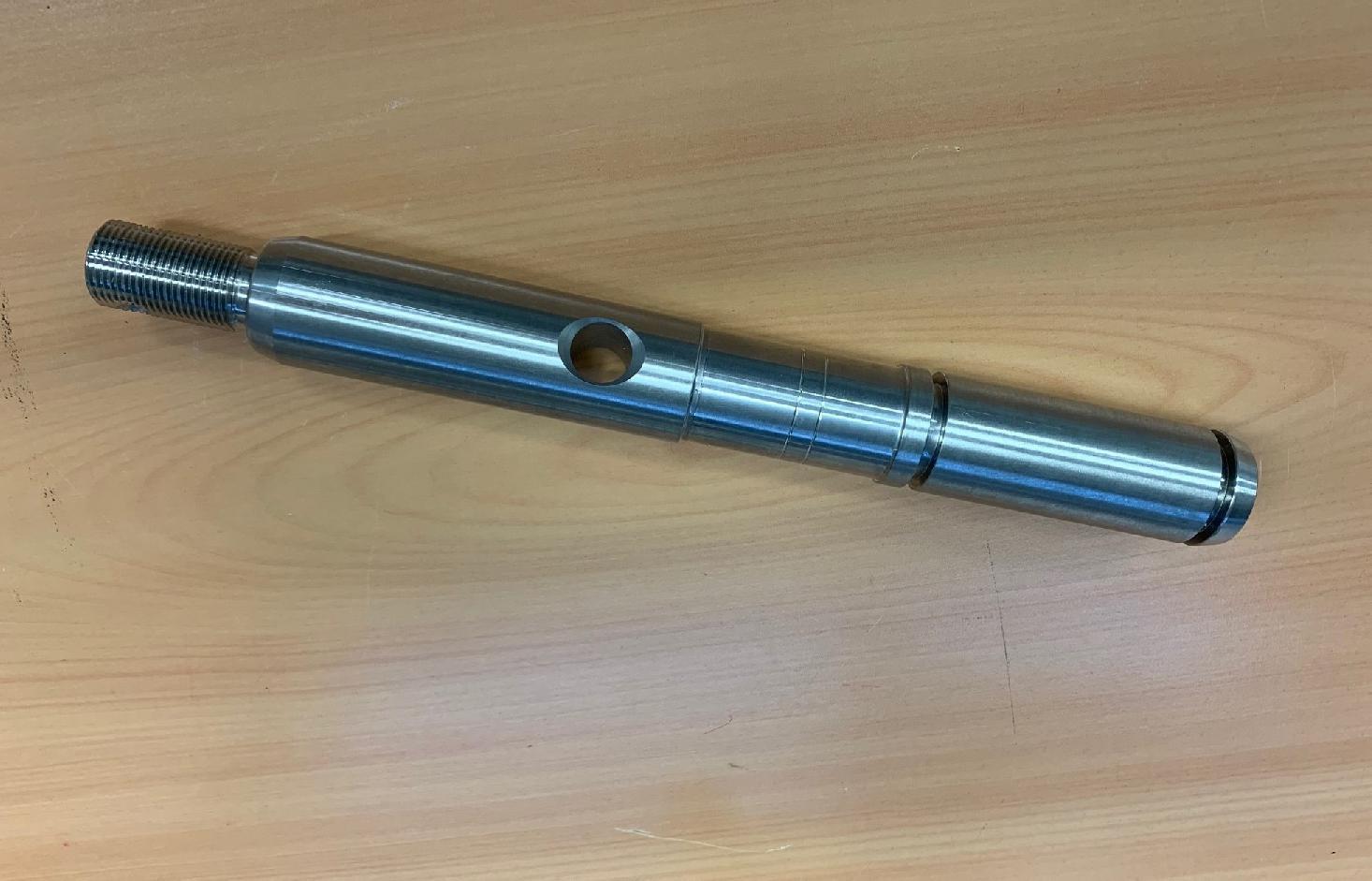

Part Number 3078844: AXLE

Pos nr	Part number	Description	Weight in kg
1	3203398	WHEEL DRIVE
3	1207756	WHEEL NUT	0.06
4	0106092	CAPSCREW	0.001
6	3078845	SUSPENSION CYLINDER	140
7	3006265	STIRRUP	2.900
8	2215105	SHIM	0.22
9	1065914	O-RING, 110 X 3	0.005
10	1685817	HEXAGON SOCKET HEAD CAP SCREW	0.11
11	1207873	WASHER	0.01
12	0106103	BOLT C/W WASHER	0.001
13	1207936	WASHER
16	2255320	BEARING, ROLLER|8.25X12.50X2.25	15.780
17	0559392	MALE SCREW COUPLING	0.02
18	0314592	LOCKING CONE	0.009
19	2216636	DIRT SCRAPER	0.085
21	3006273	LEVER 2 INCL. 2 X BUSH	7.1
22	3006271	LEVER I INCL. 2 X BUSH	5.200
26	3078844	AXLE	1.3
27	2219672	FLANGE BUSHING	0.1
28	2313858	WASHER	0.36
29	1930099	THRUST WASHER	0.012
30	2254765	THRUST WASHER	0.02
31	2314166	SEALING RING	0.007
32	1922132	PANEL	0.001
33	2251079	SEALING RING	0.01
34	1577359	DOWEL PIN	0.040
35	2212326	CASTLE NUT	0.001
36	0106839	COTTER PIN	0.005
37	2314490	WASHER	0.03
38	1069221	O-RING, 140 X 3
39	0437290	HEXAGON SOCKET HEAD CAP SCREW	0.045
41	0118576	PIN	3.221
42	3319746	HEXAGON NUT	0.150
43	1930105	AXIAL- BEARING	0.16
44	1930104	V-RING	0.01
45	0117137	RING SEALING	0.001
46	3315230	PLUG CONNECTION	0.03
51	3189344	PROTECTIVE PLATE
52	1146969	HEXAGON SOCKET HEAD CAP SCREW	0.1
53	2315113	WASHER M8	0.005

* Selected parts are automatically added to your RFQ list *

Pieces	Part nr.	Description	Brand
- +	1923999	WASHER M5	Grove
- +	2217877	FUSE,	Grove
- +	3327788	COTTER PIN	Grove
- +	3056414	CONNECTION NOZZLE	Grove
- +	1146971	HEXAGON SOCKET HEAD CAP SCREW	Grove
- +	1930943	PIN	Grove
- +	3113828	PLATE	Grove
- +	3117686	SLIDER	Grove
- +	02318985	SHIM PLATE	Grove
- +	4163314	RING	Grove
- +	3054934	SLIDER	Grove
- +	3092376	SLIDER	Grove
- +	3078844	AXLE	Grove
