Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:
3118051-ETL (Grove GMK 4100-L )
3166116-ETL (Grove GMK 4100-L )

Also known as:
0314839, 314839, 00314839, 000314839
Parts for Grove GMK 4090-1, Figure 3118051-ETL:

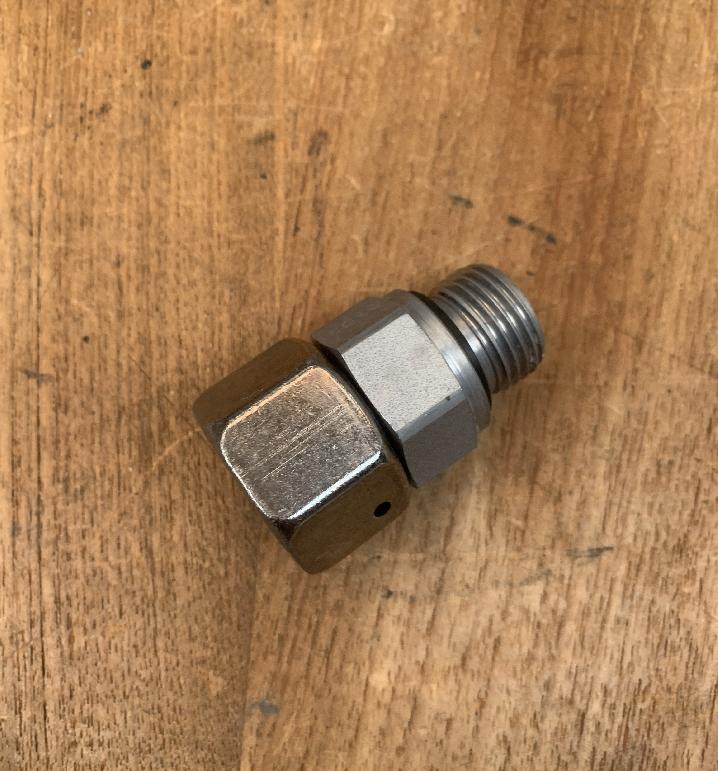

Part Number 0314839: SCREW-IN FITTING
Pos nr Part number Description Weight in kg
1 3134345 PLATE
2 3317877 SINGLE SLIDE VALVE
4 3046482 PRESSURE LIMITTING VALVE 1.015
5 3046829 PRESSURE VALVE 1.25
6 1575961 BLOCK-TYPE BALL COCK 0.43
9 3320593 BLOCK-TYPE BALL COCK
11 0551949 COUPLING SLEEVE 0.315
12 0558574 LOCK NUT 0.020
13 1921883 SCREW-IN FITTING 0.300
14 1147752 T-CONNECTING NOZZLE 0.05
15 0553822 ORIFICE PLATE
16 0314839 SCREW-IN FITTING 0.175
17 1147755 T-CONNECTION NOZZLE 0.085
18 1374762 SCREW CONNECTION 0.200
19 1147745 T-CONNECTING NOZZLE
20 1575155 SCREW-IN FITTING 0.040
21 1575172 SCREW-IN FITTING 0.03
23 1147742 CONNECTING NOZZLE, ELBOW
24 1147645 W-CONNECTION NOZZLE 0.206
26 0434089 W-CONNECTION NOZZLE 0.85
27 1147771 W-CONNECTION NOZZLE 0.065
30 1147777 L-CONNECTION NOZZLE 0.27
31 1147763 L-CONNECTION NOZZLE 0.05
32 0314538 REDUCING NOZZLE 0.055
36 1203245 CONE-REDUCTION CONNECTION 0.115
38 1377371 MEASURING NOZZLE 0.08
39 2214308 MEASURING NOZZLE 2.080
41 0103838 HEXAGON SCREW
42 0437178 HEXAGON SCREW 0.020
45 0437643 HEXAGON NUT M10 0.010
46 0437642 HEXAGON NUT M8 0.003
48 1368030 WASHER M10 0.005
49 1686701 WASHER M8 0.005
50 3044048 HEXAGON SOCKET HEAD CAP SCREW
51 1374820 WASHER
52 1368068 HEXAGON NUT M4 0.005
55 2318317 CLAMP (PAIR) 0.06
56 1571479 CLAMP (PAIR) WITH SCREWS
57 1571482 SPACER PLATE
59 1146968 HEXAGON SOCKET HEAD CAP SCREW
60 0437742 HEXAGON NUT M6 0.005
62 1147746 L-CONNECTION NOZZLE 0.100
63 1921887 SCREW-IN FITTING 0.11
64 0313896 SCREW-IN FITTING 0.065
66 3318732 BALL COCK COMBINATION 1.631
67 2254456 CONE-REDUCTION CONNECTION 0.220
68 1575169 SCREW-IN FITTING 0.09
69 1575302 CONE-REDUCTION CONNECTION 0.066
71 0434163 SCREW-IN FITTING 0.095
72 1147538 SCREW-IN FITTING 7
73 1147686 W-CONNECTION NOZZLE 0.13
77 0436439 L-CONNECTION NOZZLE 0.230
78 1200755 CONE-REDUCTION CONNECTION 0.28
79 0431448 COUPLING NUT 0.15
80 0314592 LOCKING CONE 0.009
81 1374757 SCREW CONNECTION 0.05
82 1147726 CONNECTING NOZZLE 0.03
85 1147783 CONNECTING NOZZLE
600 3135699 HOSES, EMERGENCY MODE, SLEWING GEAR
