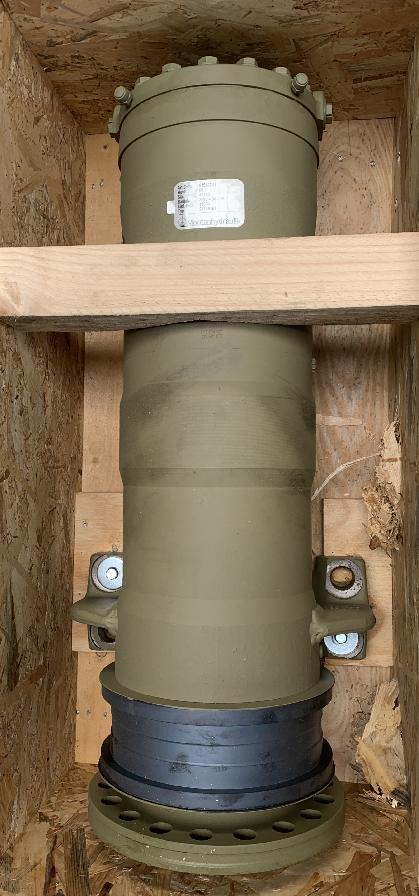

Grove 2251293 - SUSPENSION CYLINDER ASSEMBLY

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2251293, 02251293, 002251293

Parts for Grove GMK 6220L, Figure 2287694-ETL:
Part Number 2251293: SUSPENSION CYLINDER ASSEMBLY

Pos nr	Part number	Description	Weight in kg
1	2287111	AXLE DRIVE
3	3006271	LEVER I INCL. 2 X BUSH	5.200
3	2255728	LEVER I	5.200
3	2313586	PLAIN BEARING BUSH	0.04
4	3006273	LEVER 2 INCL. 2 X BUSH	7.1
4	2255730	LEVER II	7.1
5	3006282	AXLE	1.3
6	2219672	FLANGE BUSHING	0.1
7	2313858	WASHER	0.36
8	1930099	THRUST WASHER	0.012
11	2310288	WHEEL COMPLETE (SELECTION)
12	2251293	SUSPENSION CYLINDER ASSEMBLY	140
13	2083403	STIRRUP	3.3
14	2254765	THRUST WASHER	0.02
15	2255320	LIQUID LEVEL INDICATOR	0.19
16	2314166	SEALING RING	0.007
17	1922132	O-RING	0.001
18	2251079	SEALING RING	0.01
19	1930104	V-RING	0.01
20	1930105	AXIAL- BEARING	0.16
21	2216636	DIRT SCRAPER	0.085
23	1577359	DOWEL PIN	0.040
24	2212326	CASTLE NUT	0.001
25	0106839	COTTER PIN	0.005
26	0118576	PIN	3.221
27	1685833	HEXAGON NUT	0.150
28	2251322	KNURLED NUT	0.005
29	2255889	SLIDE RING	0.005
30	2255888	THREADED BUSH	0.005
32	0106092	CAPSCREW	0.001
33	0118983	HEXAGON SCREW	0.096
34	1147634	HEXAGON SOCKET HEAD CAP SCREW
35	0106103	BOLT C/W WASHER	0.001
36	1207756	WHEEL NUT	0.06
38	1065914	O-RING, 110 X 3	0.005
38	1065814	0-RING
39	1207034	WASHER	0.02
40	1207936	WASHER
42	2215105	SHIM	0.22
50	0117125	SEALING RING	0.005
51	2257144	HOSE
52	1068363	CLAMP
58	0119350	HEXAGON SCREW
58	0011935	HEXAGON BOLT
59	0105169	HEXAGON SCREW	0.37
