3065715-ETL (Grove GMK 6220L )

Parts for Grove GMK 5220, Figure 3065715-ETL:

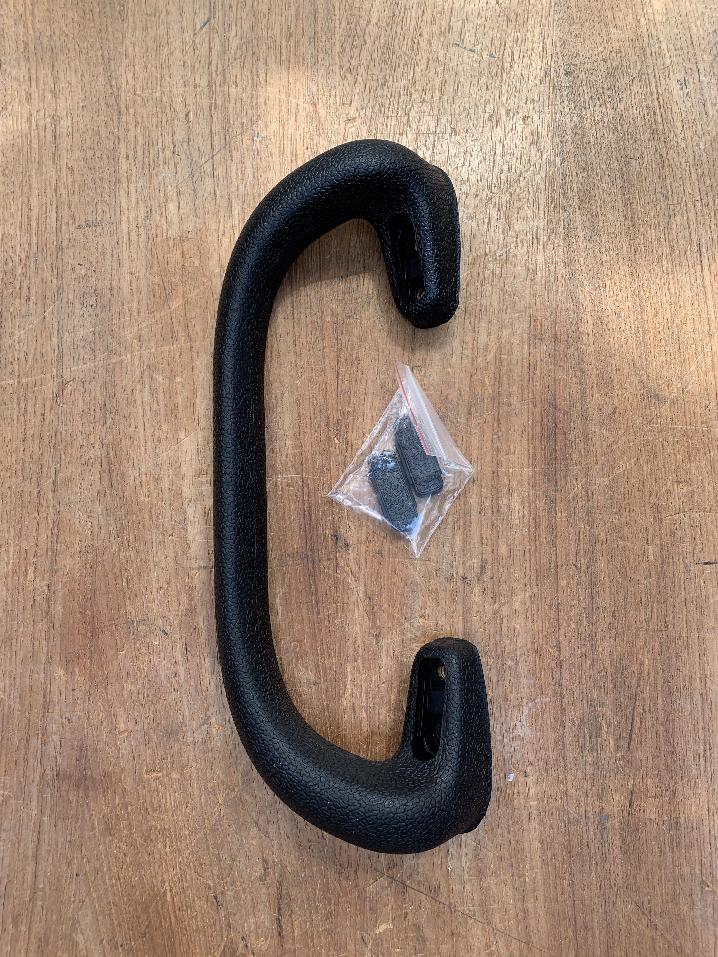

Part Number 1926769: BOARDING HANDLE

Pos nr	Part number	Description	Weight in kg
1	3012947	DRIVER
2	3008201	DOOR, LEFT	40.500
3	3008202	DOOR R1GHT	40.5
8	3003093	FRONT PANE	39
9	3012038	SOUND ISOLATION
11	2310565	SUN VISOR	0.7
12	3007998	WINDSCREEN WIPER SYSTEM
13	3054751	ATTACHMENT RAIN LEADGE	0.500
13.01	2318831	RAIN LEADGE (METER WARE)	0.235
15	3008203	WINDSCREEN WASHING SYSTEM
17	3011291	PLATE WITH TAP HOLES	0.5
18	2311774	RUBBER BUFFER	0.47
19	3008217	SUPPORT	0.430
26	3041897	WATER HEATER
27	3041893	CONTROL ELEMENT	0.31
28	2312270	ROTARY SWITCH	0.24
29	3041894	ROTARY KNOB	0.01
30	3041895	CONTROL ELEMENT	0.2
30.01	2314817	KNOB	10
31	2311860	WATER VALVE	0.4
34	3041901	WATER HEATER	0.1
35	1680453	BOWDEN CABLE	0.280
36	1070639	CLAMPING STRIP (YARD GOOD)	0.455
38	0552253	FILLER-PROFILE STRIP (YARD GOO	0.055
39	3317658	THREE-POINT AUTOMATIC SEAT BELT
40	3012001	AIR INTAKE HOOD
41	3012002	AIR INTAKE H000 MIDDLE
46	3009950	HOLDING PLATE	0.02
47	1685204	CLAMP	0.005
49	3317659	THREE-POINT AUTOMATIC SEAT BELT
50	2210981	COAT HOOK	0.005
53	3007974	INSTRUMENT BOARD
56	3011299	COVER PLATE	0.001
57	3011300	COVER PLATE
58	3008221	COVER PLATE
60	3066183	INTERIOR COVERS
63	2312568	EXTENSION TUBE	0.41
68	3011294	COVER	1.32
69	3066182	FLAP
70	3041898	SNAP LOCK	0.06
71	1926769	BOARDING HANDLE	0.610
92	2216385	SPIDER KNOB
123	2311242	DOOR TRESHOLD	0.14
147	2217744	MIRROR ARM, LEFT	1.70
148	2217745	MIRROR ARM, RIGHT	2.40
149	1375783	MIRROR, HEATED	2.06
150	2217746	OUTSIDE MIRROR. HEATED (WIDE-A	0.79
151	1930278	MIRROR	0.98
159	2311863	SEALING STRIP (METERWARE)	0.010
