3322120-ETL (Grove GMK 3050 V3 )
3322114-ETL (Grove GMK 3050 V3 )

Parts for Grove GMK 4090-1, Figure 3322120-ETL:

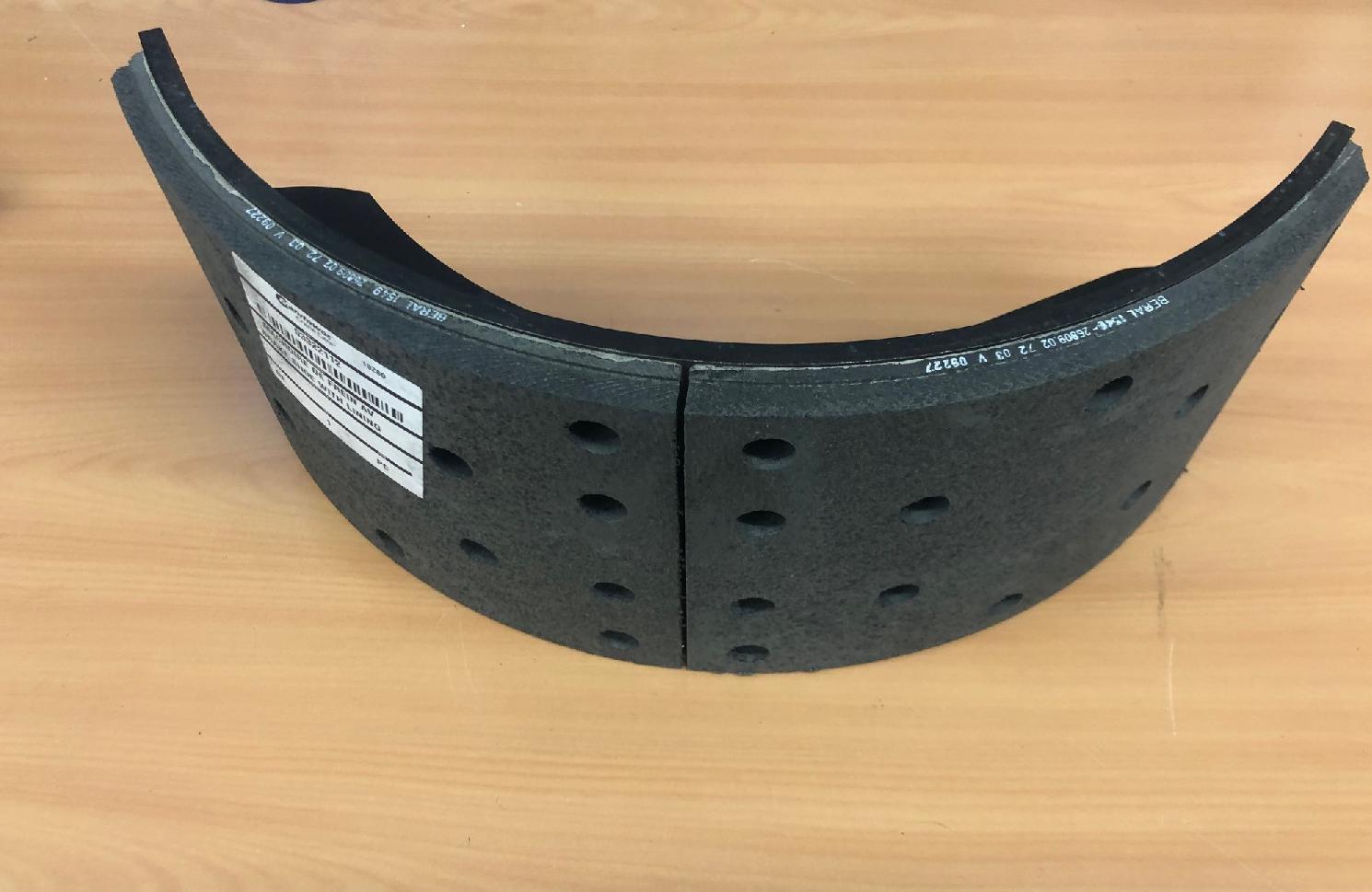

Part Number 3322112: BRAKE SHOE

Pos nr	Part number	Description	Weight in kg
1	2315390	SCREW PLUG	33
2	2315396	BRAKE ANCHOR PLATE	16.380
3	2315397	COVER PLATE DUPLEX	0.001
4	3322110	TENSION SPRING	0.15
5	3322111	PRESSURE SPRING	0.250
6	3322112	BRAKE SHOE	11.925
7	2315401	EXPANDER UNIT DUPLEX	5.36
8	1927225	NUT	0.185
