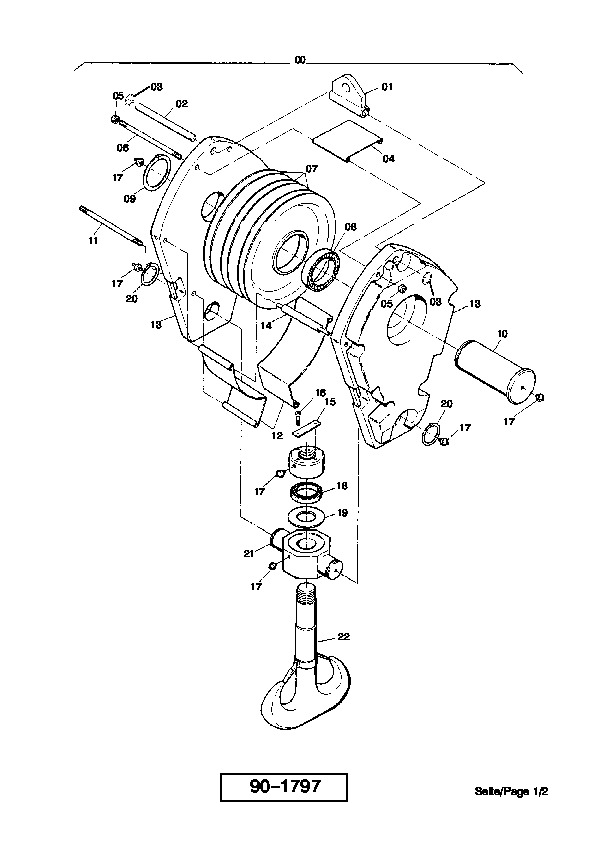

Parts for Demag CC 2800, Figure 90-1797:
Part Number 35056299: GREASE NIPPLE

Pos nr	Part number	Description	Weight in kg
-	00500098	CHECK PIN
0	55178640	HOOK BLOCK ASSY.
1	97808573	EYELET
2	97808673	PIN
3	34253699	CIRCLIP
4	97808773	COVER PLATE
5	33460199	PROTECTIVE SHIELD
6	97808873	PIN
7	97808973	SHEAVE
8	62128840	ROLLER BEARING
9	34255799	CIRCLIP
10	97809073	AXLE
11	97809173	SCREW WITH PLUG
12	97809273	ROPE PROTECTION
13	97809373	SIDE COVER
14	97809473	JOINT SHAFT
15	97809573	FUSE
16	32044699	SCREW
17	35056299	GREASE NIPPLE	0.01
18	62128940	ROLLER BEARING
19	62129040	RING
20	34256099	CIRCLIP 70X
21	97809673	LIFTING BEAM
22	97809773	TWIN HOOK WITH NUT
