Demag 51032198 - DISC

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

62-1226 (Demag CC 2800 )
62-1905A (Demag CC 2800 )
62-1920 (Demag CC 2800 )
62-6132 (Demag CC 2800 )
62-7380 (Demag CC 2800 )
993-0835 (Demag CC 2800 )

Also known as:
51032198, 051032198, 0051032198

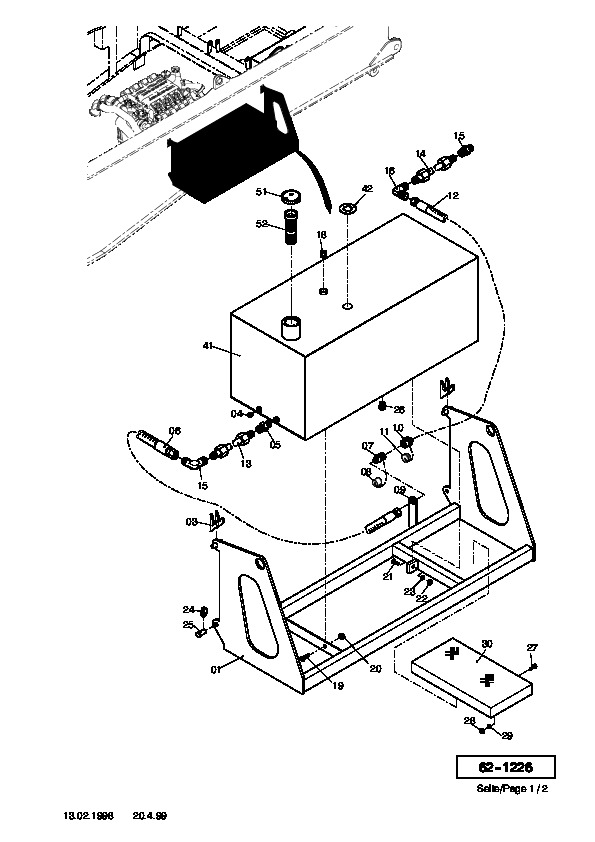

Parts for Demag CC 2800, Figure 62-1226:
Part Number 51032198: DISC

Pos nr	Part number	Description	Weight in kg
1	10510512	FRAME
2	10511512	ADD. FUEL TANKCONSIST, OF FIG-NOS: 41+42
3	10511612	PLATE
4	31312099	SCREW
5	55195840	SOCKET
6	00091412	HOSE ASSY.
7	56707440	SLEEVE
8	55158840	NUT
9	10511712	RETAINER
10	56707240	PLUG
11	55158940	SCREW
12	00091512	HOSE ASSY.
13	48522740	PIPE
14	63332940	PIPE
15	55130240	SOCKET
16	37040399	UNION
18	31312299	SCREW PLUG
19	30746699	BOLT
20	12502399	NUT NEW#12502499
21	30761299	SCREW
22	50058698	NUT	0.1
23	34046999	DISC EF34051099
24	51161798	PIN SNAP
25	10220812	PIN
26	62125340	OIL DRAIN VALVE
27	20759340	SCREW
28	50986298	NUT
29	51032198	DISC	0.002
30	00091912	SAFETY GRATING
41	10125312	FUEL TANK WELDMENT
42	10511412	WASHER
51	25308740	FILLER CAP
52	47480200	STAINER

* Selected parts are automatically added to your RFQ list *
