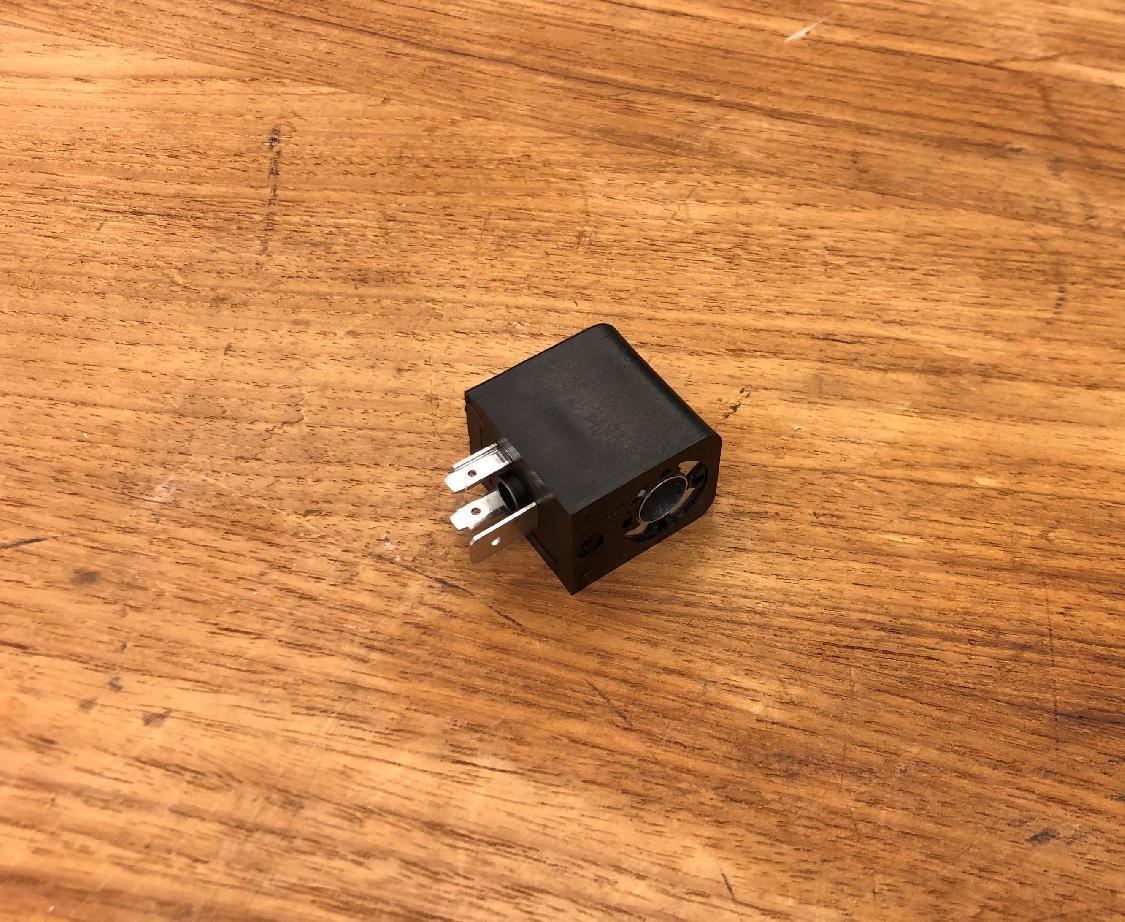

Krupp 1684936 - MAGNET

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
1684936, 01684936, 001684936

Parts for Krupp KMK 3045, Figure 1969772-ETL:
Part Number 1684936: MAGNET

Pos nr	Part number	Description	Weight in kg
1	1927170	SILENCER	0.06
1	1684621	AIR DRYER	4.400
2	1684372	FOUR-CIRCUIT-SAFETY VALVE
3	0550460	VENTIL,BREMS-,	3.18
4	1200650	VENTIL,HANDBREMS
5	0551861	DRUCKMESSER,LUFT	0.3
6	1570879	PRESSURE SWITCH	0.220
7	0551732	VENTIL,FEINREGEL	2.7
9	1066113	NONRETURN VALVE
10	1574546	DOUBLE UNION
11	1574547	WING NUT
12	1574548	FASTENING CHAIN
18	1574544	AIR RESERVOIR
19	1570750	DRAIN VALVE	0.200
20	1570657	ZYLINDER,MEMBRAN	0.47
21	0551717	OVERFLOW VALVE	0.46
22	1678545	VENTIL,ZWEIWEGE-	0.21
23	2211563	VALVE	0.600
23	1377531	MAGNET	0.41
24	1684936	MAGNET	0.065
24	1684938	PILOT CONTROL VALVE
24	2211944	5/2-WAY MANET VALVE	0.41
26	1202061	PRESSURE TEST CONNECTION	0.07
27	1681436	COMPRESSED-AIR RESERVOIR
28	1200648	COMPRESSED-AIR RESERVOIR
29	0557051	COMPRESSED-AIR RESERVOIR
30	1376580	MAGNET VALVE	2.460
30	1923262	SPARE COIL	0.150
31	1684756	TYRE INFLATOR VALVE	0.36
33	1200582	PRESSURE LIMITING VALVE	0.54
34	1922850	STOP LIGHT SWITCH
35	1684629	SPRING-LOADED CYLINDER
